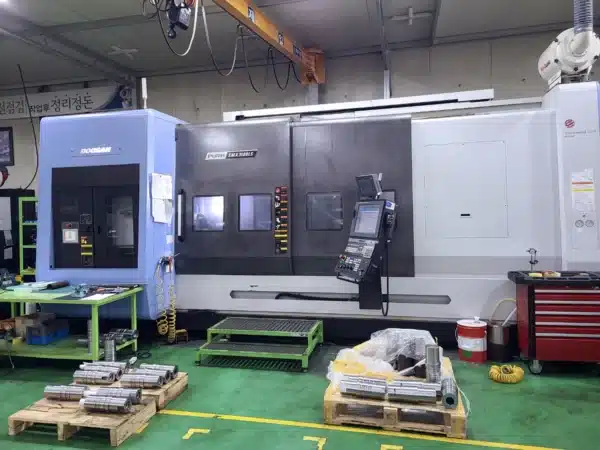

Doosan Puma SMX3100LS B-axis CNC Lathe
machine specification
SWING OVER BED 26″
CHUCK SIZE 1 15″
BAR CAPACITY 1 4″
SPINDLE SPEEDS 1 2,500 RPM
CHUCK SIZE 2 12″
BAR CAPACITY 2 3.6″
SPINDLE SPEEDS 2 4,000 RPM
B – AXIS HEAD INDEXING 0.0001
B – AXIS MILLING SPINDLE TAPER Capto C6
B – AXIS MILLING SPINDLE SPEED 12,000 RPM
B – AXIS MILLING SPINDLE HORSE POWER 35 hp
ATC FOR MILLING SPINDLE 80
TOOL LENGTH 17.7″
TOOL WEIGHT 26.5 lb
X1 – AXIS TRAVEL 24.8″
Z1 – AXIS TRAVEL 101.8″
Y1 – AXIS TRAVEL 11.8″
C – AXIS INDEXING 1 360
W – AXIS TRAVEL SUB SPINDLE 98.4″
RAPID TRAVERSE RATE – X1 1889.8 ipm
RAPID TRAVERSE RATE – Z1 1181.1 ipm
RAPID TRAVERSE RATE – Y1 1417.3 ipm
MACHINE WEIGHT 45,195 lb
DIMENSIONS 252″ x 118.5″ x 112.2″
TURNING DIAMETER 26″
TURNING LENGTH 100″
Option / equipped with
FANUC 31-B5 CNC CONTROL
SCALES FOR X/Y/Z
SMW STEADY REST 3.93″ TO 16.1″
CHIP CONVEYOR
X AXIS BALLSCREW COOLING
ABSOLUTE PULSE CODER
AUTOMATIC ELECTRIC TOOL SETTER
PROGRAM STORAGE 1280M
EMBEDDED ETHERNET
AICC II 600 BLOCKS
8 PAIRS WORK COORDINATES
ATC OPERATING PANEL WITH TOUCH CAMERA
