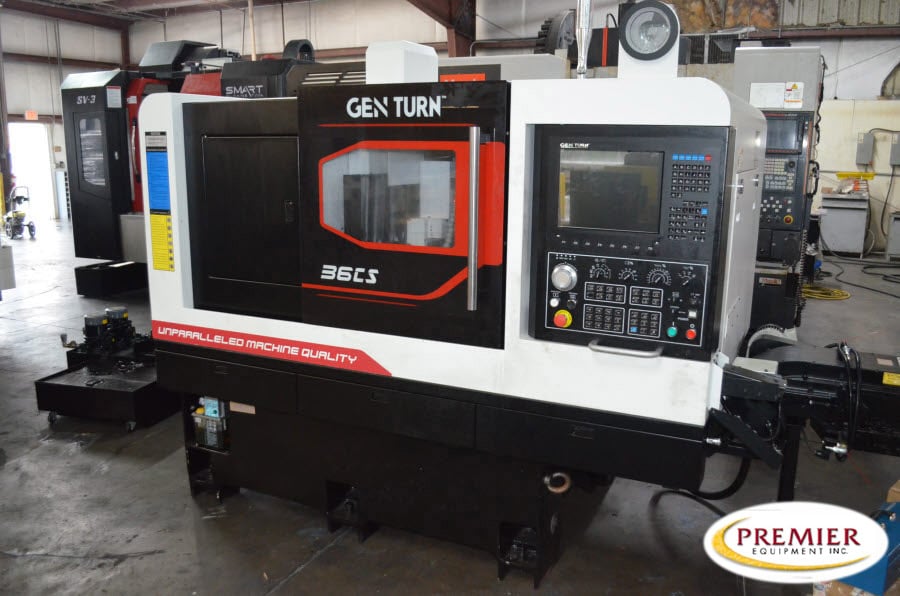

Gen Turn 36CS 7-Axis Twin Spindle Mill/Turning Center
Specifications (subject to buyer verification):
Main Spindle
Maximum RPM/Spindle Bearing: 6,000 RPM / 5-Bearing Spindle, 3-Front, 2-Rear ø110mm
Spindle Motor: 10-HP 3,000 rpm spindle Motor, 2:1 Pulley Ratio
Collet Nose: Brown & Sharpe #22???? or Traub A-32?????
Drawtube Bore: 1.456” (37mm)
Maximum Barstock Diameter: 1.25” (32mm) Standard 1.375” (36mm) with Adapter
X-Axis Travel: 7.28” (185mm)
Y-Axis Travel (true Y-Axis, not compound Y) : 19.29” (490mm)
Z-Axis Travel: 6.50” (165mm)
Rapid Travel Speed: X, Y, Z: 1,181 IPM (30m/minute)
Minimum Input Unit: 40 millionths (0.00004”) (0.01mm)
OD Turning Tool Positions: 6 OD Tools (1/2” or 12mm) (5-5/8” Tool Plate Available)
ID Turning Tool Positions: 5 ID Tools
Sub Spindle
Sub Spindle RPM/Spindle Bearing: 6,000 RPM / 4-Bearing / Quad-Duplex Pair Configuration
Sub Spindle Motor: 5-HP 3,000 rpm Spindle motor, 2:1 pulley ratio
Collet Nose: Brown & Sharpe #22??? or Traub A-32???
Maximum Barstock Diameter: 1.250” in Collet Chuck (1.080” (27.5mm) Pass Thru)
X-Axis Travel: 11.53” (293mm)
Z-Axis Travel: 11.61” (295mm)
Live Tooling
Cross Slide Live Tools: 4-ER-20 Cross Slide Live Tools, 4,000 rpm, 2.0 HP (1.5kw)
Front Slide Live Tools: 3-ER-20 Front Slide Live Tools, 4,000 rpm, 1.0 HP (0.75kw)
Live Tool Collet Size: ER-20 Collet, Ø1/2” (0.5-13mm) Tool Shank Capacity
Max RPM for Live Tools: 4,000 RPM (1 cross live tool can be substituted on subspindle tool block
Equipped With (subject to buyer verification):
Yaskawa CNC Control
36mm 1-3/8” Bar Capacity
Dual “C” Axis and “Y” Axis with 19” Travel
27-Tools with 11-Driven Tools Capability
Simultaneous Main & Sub-Spindle Machining
Parts Catcher
Chip Conveyor
1,181 Inch per Minute Rapid Rates
Edge Patriot 338 12’ Barfeeder
**Sold and Installed New in 2021
