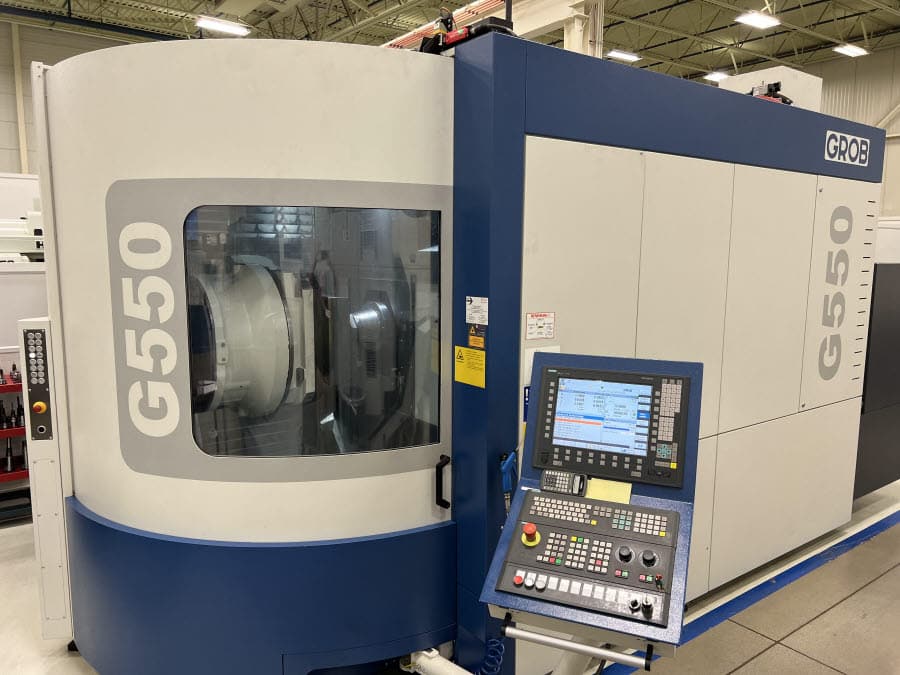

GROB MODEL G550-185
5-AXIS HORIZONTAL UNIV. MACHINING CENTER
Table Size 24″ x 24″ 630 mm X 630 MM
X Travel 31.4″ 800 mm
Y Travel 40.1″ 1020 mm
Z Travel 40.1″ 1020 mm
B-Axis Table Diameter 30.3″
C Axis Motion (Degrees) 360 Degrees
A-Axis Swivel Angle -180° / 45°
Max Table Load 1.543 lbs
Spindle RPM 16,000 RPM
Spindle Taper HSK 63A
Spindle Horse Power 54/71 HP
ATC Capacity 50 Position
Machine Weight 44,000 lbs
Equipped With:
Siemens 840D CNC
HIGH PRESSURE COOLANT SYSTEM
COMPRESS AIR THROUGH SPINDLE
RENISHAW PROBE
MIST COLLECTOR
OIL SKIMMER
CHIP CONVEYOR
GRID HOLE PATTERN PALLET DESIGN (2ND EXTRA PALLET INCLUDED)
