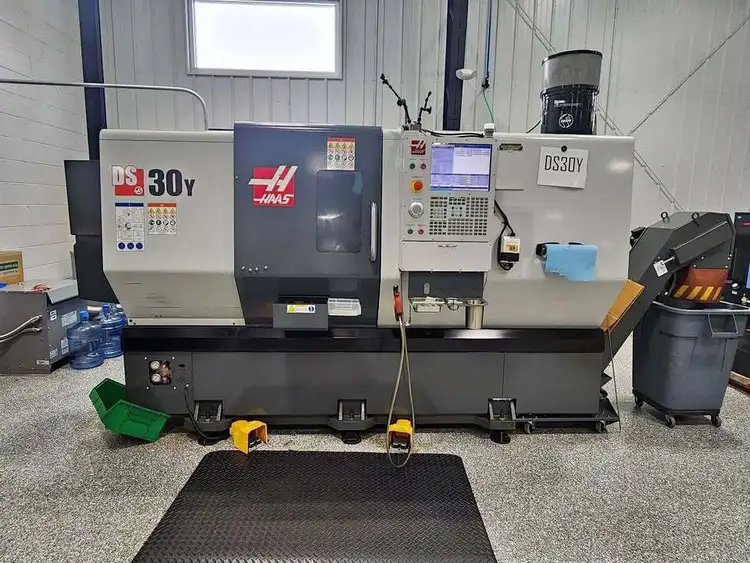

Haas DS30Y CNC Lathe with Barfeed
SPECIFICATIONS:
SIZE 8″ Chuck
SWING 31.75″
MACHINING LENGTH 584.2 mm
# AXIS 2
CHUCK SIZE 8.3″
BAR CAPACITY 3″
POWER 30 hp
MAX RPM 4,500 RPM
TURNING DIA 18″
TAILSTOCK No
LIVE TOOLING Yes
SUB SPINDLE Yes
Sub-Spindle
Live Tooling
Macros
Rigid Tapping
M19 Spindle Orientation
1 GB Memory
Compensation Tables
Haas Bar Feed
Power On Hours: 23,003 hours and counting
Cut Hours: 5,890 hours and counting
MP Systems 1,000 psi coolant
Royal Mistbuster System
Parts Catcher
Chip Conveyor
Main Spindle RPM: 4,000 RPM
Sub Spindle RPM: 6,000 RPM
All tool positions live capable, BMT-65
Main Spindle has Royal QG-65 Quick Change
Sub Spindle has Royal QG-65 Quick Change
