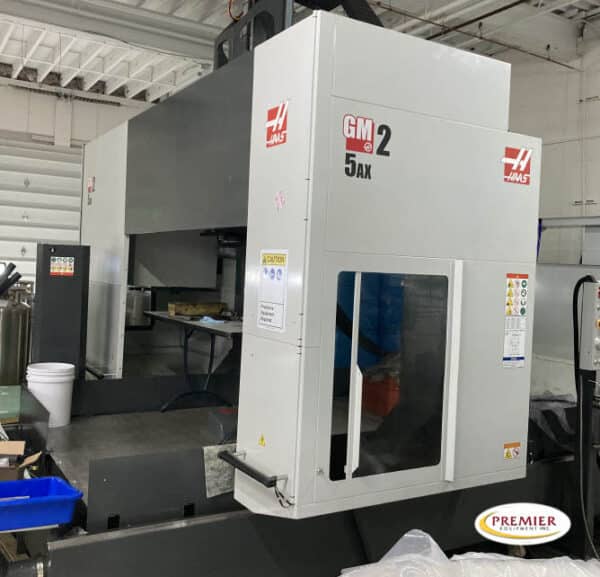

Haas GM-2-5AX 5-Axis CNC Gantry Mill
Specifications (subject to buyer verification):
Travels
X Axis145.00 in
Y Axis87.50 in
Z Axis39.30 in
Spindle Nose to Table (~ max)37.0 in
Spindle Nose to Table (~ min)5.0 in
Spindle
Max Rating16.0 hp
Max Speed 20000 rpm
Max Torque 11.3 ft-lbf @ 7500 rpm
Drive System Integral Spindle/Motor
Taper HSK-63F | HSK-A63
Bearing LubricationGrease Packed
CoolingLiquid Cooled
B Axis – Tilt
Travel120 ° to 120- °
Max Speed110 °/sec
Torque (Continuous)250 ft-lbf
C Axis – Rotation
Travel ±245 ° to 245- °
Max Speed200 °/sec
Torque (Continuous)254 ft-lbf
Table
Length144.0 in
Width72.0 in
Thickness1.0 in
Max Weight on Table (evenly distributed)6000 lb
Between Columns75.0 in
Feedrates
Max Cutting472 ipm
Rapids on X472 ipm
Rapids on Y 1889 ipm
Rapids on Z 1181 ipm
Axis Motors
Max Thrust X4500 lbf
Max Thrust Y1650 lbf
Max Thrust Z2000 lbf
Tool Changer
TypeSMTC
Capacity30+1
Max Tool Diameter (full)2.5 in
Max Tool Diameter (adjacent empty)3.5 in
Max Tool Length (from gage line)11 in
Max Tool Weight12.0 lb
Dimensions – Shipping
Domestic Pallet 226.0 in x 143.0 in x 137.0 in
Weight 22040 lb
Equipped With (subject to buyer verification):
Haas Control
30+1 Side-Mount Tool Changer
20k RPM Spindle
Gantry Router Coolant System
WIFI Camera
High Speed Machining
Auxiliary Coolant Filter
Coolant Tank Oil Skimmer
Chip Auger
All Available Tooling and manuals
