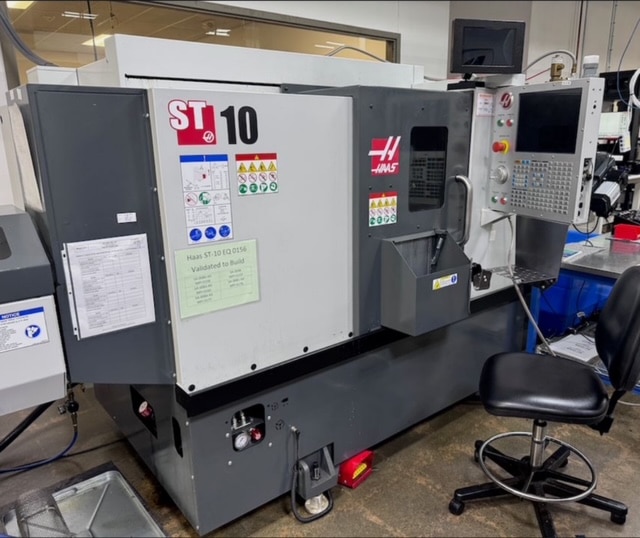

HAAS ST10 CNC Chucker Lathe
SPECIFICATIONS:
Max Part Swing: 16.5″
Max Cutting Diameter: 12″ (with BOT turret)
X Axis Travel: 7.9″
Z Axis Travel: 16″
Rapid Traverse Rate (X & Z): 1200 IPM
Spindle Bore: 2.31″
Spindle Nose: A2-5
Max Spindle Speed: 6,000 RPM
Bar Capacity: 1.75″
Spindle Motor: 15 HP
Weight: 7,900 lbs.
EQUIPPED WITH:
12-Station Bolt On Turret
Belt Type Chip Conveyor
Parts Catcher
Rigid Tapping
Haas Connect
Barfeed
Barfeed
No Tailstock
