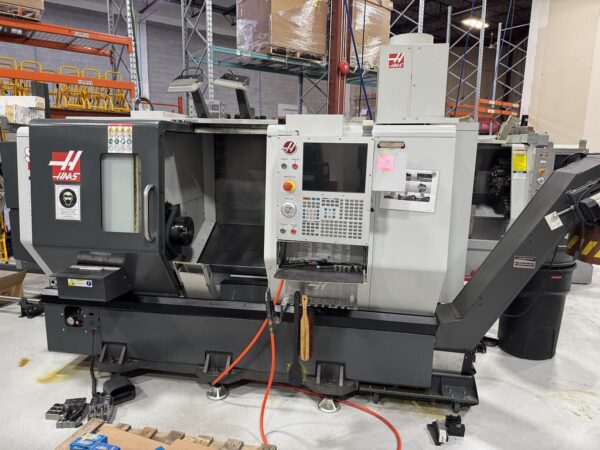

Haas ST20 Chucker Lathe
MAX. PART SWING: 21″
MAX. CUTTING DIAMETER: 11.75″
MAX. CUTTING LENGTH: 22.5″
BAR CAPACITY: 2.5″
X-AXIS TRAVEL: 8.4″
Z-AXIS TRAVEL: 22.5″
RAPIDS ON X, Z: 945 IPM
MAX. RATING: 20 HP
SPINDLE BORE: 3.5″
MAX. SPEED: 4000 RPM
ELECTRICS: 220V/3/60
FEEDRATES – X, Y, Z: 472 IPM, 472 IPM, 945 IPM
Haas CNC COntrol
1GB MEMORY
8″ 3-JAW CHUCK
AUTOMATIC TOOL PRESETTER
BOLT ON STYLE TURRET
ENCLOSURE EXHAUST
ETHERNET INTERFACE
HAAS CONNECT OPTION
HIGH INTENSITY LIGHTING
BELT TYPE CHIP CONVEYOR
PARTS CATCHER SYSTEM
RIGID TAPPING
VISUAL PROGRAMMING SYSTEM
