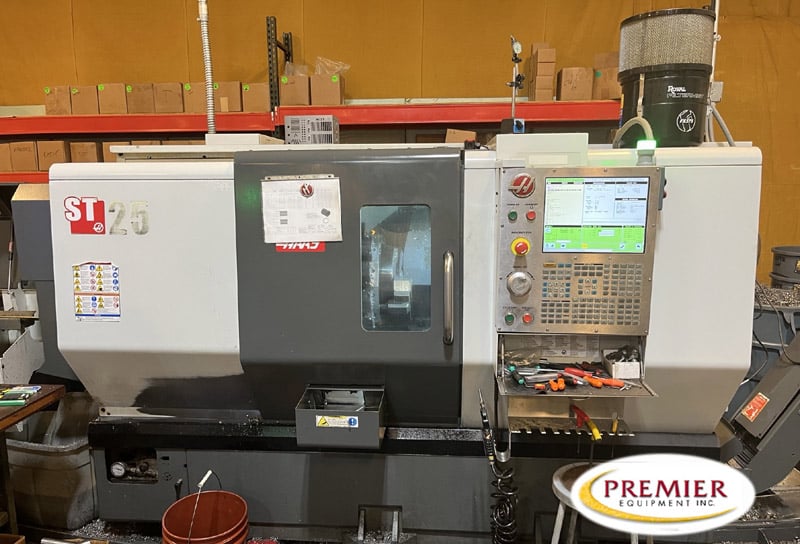

Haas ST25 Chucker CNC Chucker Lathe
Specifications (subject to buyer verification):
APACITIES
Chuck Size10.0 in
Max Part Swing21.0 in
Max Cutting Diameter (with BOT turret)15.00 in
*Max Cutting Length (varies with workholding) 22.5 in (*May be limited because of no Tailstock)
Bar Capacity3.00 in
TRAVELS
X Axis8.4 in
Z Axis22.5 in
FEEDRATES
Rapids on X945 ipm
Rapids on Z945 ipm
SPINDLE
Spindle NoseA2-6
Max Rating30.0 hp
Max Speed 3400 rpm
Max Torque300 ft-lbf @ 500 rpm
Spindle Bore ø3.50 in
TURRET
Number of Tools 12-Station BOT
OD vs ID ToolsAny Combination (will vary with turret)
Boring Bar Rear Clearance (from back of turret ) 4.00 in
GENERAL
AIR REQUIREMENTS
Air Required4 scfm @ 100 psi
Inline Air Hose3/8 in
Coupler (Air)3/8 in
Air Pressure Min80 psi
Domestic Pallet w/Conveyor143 in 90 in 87 in
Weight w/Conveyor10000 lb
Equipped With (subject to buyer verification):
Haas CNC Control
13” x 22.5” / 3.0” Bar
Automatic Tool Presetter
Bolt-On Style Turret
Belt-Type Chip Conveyor
Parts Catcher System
Rigid Tapping
NO Tailstock
