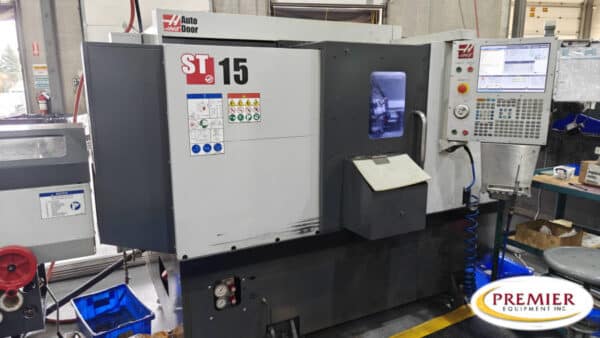

Haas ST15 CNC Turning Center
Specifications (subject to buyer verification):
CAPACITIES
Max Part Swing: 16.5”
Max Cutting Diameter (with BOT turret) : 12.00”
Max Cutting Length (varies with workholding) : 16.0”
Bar Capacity: 2.50”
TRAVELS
X Axis: 7.9”
Z Axis: 16.0”
FEEDRATES
Rapids on X: 1200 ipm
Rapids on Z: 1200 ipm
SPINDLE
Spindle Nose: A2-6
Max Rating: 20.0 hp
Max Speed: 4000 rpm
Max Torque: 150.0 ft-lbf @ 500 rpm
Spindle Bore: 3.50”
TURRET
Number of Tools: 12-Station BOT
OD vs ID Tools: Any Combination (will vary with turret)
Boring Bar Rear Clearance (from back of turret ) : 0.75”
DIMENSIONS – SHIPPING
Domestic Pallet: 126” x 70” x 81”
Weight: 7900 lb
Equipped With (subject to buyer verification):
Haas CNC Control
Barfeed
Auto Door
Parts pre-setter
Part catcher
Chip Conveyor
Tailstock
