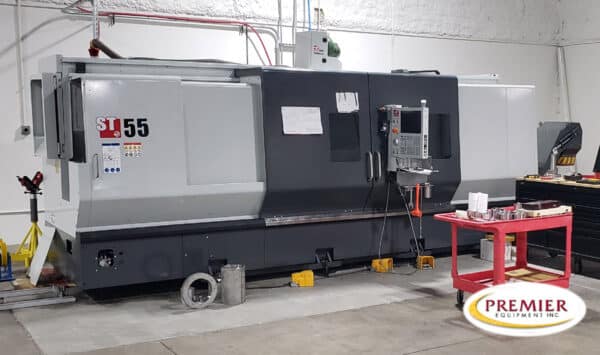

Haas ST55 CNC Turning Center
Specifications (subject to buyer verification):
SWING DIAMETER
Over Front Apron: 34.5” (876 mm)
Over Cross Slide: 25.5” (648 mm)
Over Tailstock: 25.5” (648 mm)
CAPACITIES
Max Cutting Diameter: 25.5″ (648 mm)
Maximum Cutting Length: 80″ (2032 mm)
(varies with workholding)
SPINDLE
Spindle Nose: A1-20 Front & Rear
Max Rating: 55 hp (41 kW)
Max Speed: 1000 rpm
Max Torque: 4250 ft-lb (5762 Nm) @ 30 rpm
Spindle Bore Ø: 12.5″ (Ø318 mm)
Equipped With (subject to buyer verification):
Haas CNC Control
HPC – High-Pressure Coolant System
CONVEYOR – Belt-Type Chip Conveyor
WIPS-L – Wireless Intuitive Probing System, Lathe
Rear Chuck
Tailstock
Air Chuck
LNS AutoBlok Automatic Self Centering Steady – Rest LNS1 K3-Z 1.0 EA 17,651.73 17,651.73 , 2.56″-9.25″ Capacity With Central Lubrication And Arranged With A Side Mounted Hydraulic Cylinder, This Rest Includes The coolant Wash Option At The Rollers
