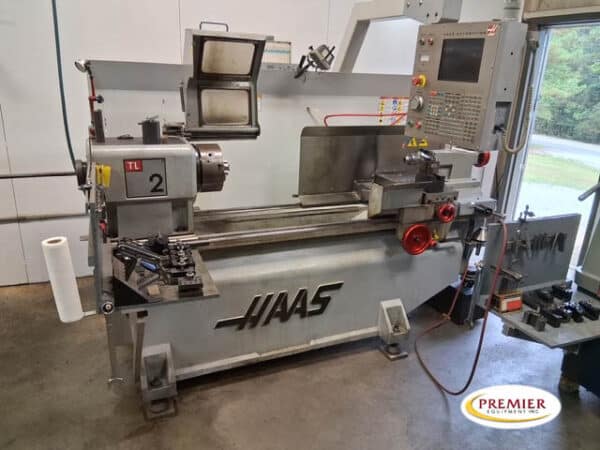

Haas TL2 CNC Tool Room Lathe
Specifications (subject to buyer verification):
Swing Over Front Apron 16.0″
Swing Over Cross Slide 11.1″
Max Cutting Diameter 16″
Max Cutting Length 48″
Between Centers 48″
X Axis Travel 8″
Z Axis Travel 48″
Rapids on X 75 IPM
Rapids on Z 150 IPM
Max Thrust X 3096 lb
Max Thrust Z 2340 lb
Spindle Nose A2-6
Max Rating 12 hp
Max Speed 2000 rpm
Max Torque 150 ft-lb @ 150 rpm
Spindle Bore / Bar Capacity 3.00″ / 3.0”
Machine Weight 4600 lb
Equipped With (subject to buyer verification):
Haas CNC Control
Manual Tailstock
3-Jaw Chuck
Tool Post
