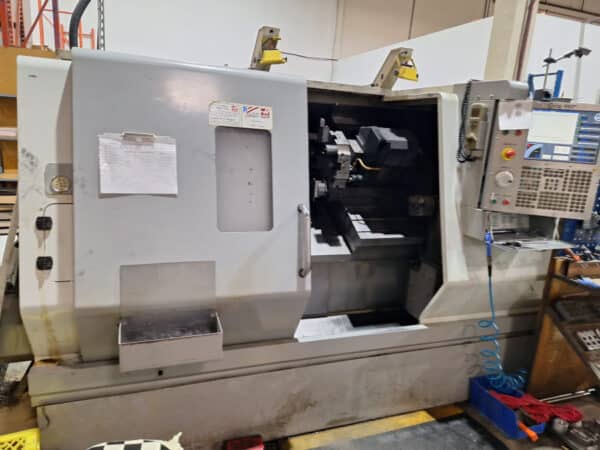

Haas TL25 CNC Lathe
Swing Front Apron: 30″
Cross Slide: 14.5″
Distance Between Centers: 39″
Max Turning Diameter: 16″
Max Turning Length: 34″
X Axis Travel: 11.3″
Z Axis Travel: 34″
C Axis Contouring: 0.001º
B Axis Travel (Sub Spindle): 33.5″
Rapid Traverse Rate X & Z Axes: 710 IPM
Rapid Traverse Rate B Axis: 710 IPM
Max Spindle Speed: 3400 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-6
Spindle Bore: 3.5″
Bar Capacity: 3.0″
Max Sub Spindle Speed: 4000 RPM
Sub Spindle Motor: 8 HP
Max Live Tooling Speed: 3000 RPM
Turret Positions: 12
Approx Dims: 149″ x 77″ x 75″
Machine Weight (Approx.): 17,000 Lbs.
Equipped with:
Full C-Axis
Sub Spindle
Live Tooling
Air Blast
Tool Presetter
Bar Feeder
High Pressure Pump
Chip Conveyor
