Haas TM-2 – 2018

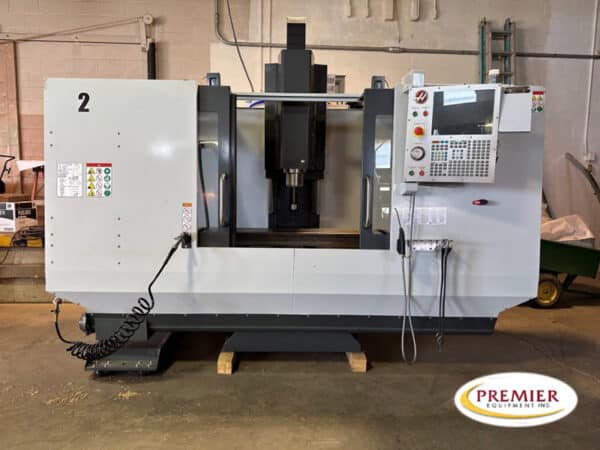

Haas TM2 CNC Mill
CNC Vertical Machining Center
Specifications (subject to buyer verification):
Travels
X Axis:  40.00 in
Y Axis:  16.00 in
Z Axis:  16.00 in
Spindle Nose to Table (~ max) :  20.0 in
Spindle Nose to Table (~ min) :  4.0 in
Spindle
Max Rating:  7.5 hp
Max Speed:  4000 rpm
Max Torque:  33.0 ft-lbf @ 1200 rpm
Drive System:  Direct Speed, Belt Drive
Taper:  40
Bearing Lubrication:  Grease Packed
Cooling:  Air Cooled
Table
Length:  57.8 in
Width:  10.5 in
T-Slot Width:  0.626 in to 0.630 in
T-Slot Center Distance:  4.00 in
Number of Std T-Slots:  3
Max Weight on Table (evenly distributed) :  350 lb
Feedrates
Max Cutting:  200 ipm
Rapids on X:  200 ipm
Rapids on Y:  200 ipm
Rapids on Z:  200 ipm
Dimensions – Shipping
Domestic Pallet:  127.0 in x 78.0 in x 100.0 in
Weight:  5060 lb
Equipped With  (subject to buyer verification):
Haas CNC Control
Wired for 4th
