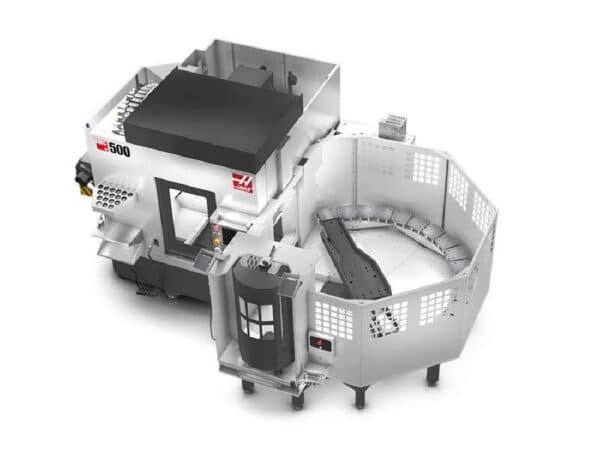

Haas UMC500 with 20+1 Pallet Pool 5-Axis CNC Vertical Machining Center
Specifications (subject to buyer verification):
Pallet Pool (20+1) Details:
Accommodates 20 storage pallets plus 1 machining station (total 21 pallets).
Pallet construction:
Thickness: 1″ (approximately 25.4 mm)
Dimensions: 7.9″ × 7.9″ (200 × 200 mm)
Made of mild steel with a precision-machined top surface; can be drilled/tapped for custom fixtures.
Haas Automation
Work envelope per pallet: 8″ diameter × 16.5″ tall (203 × 420 mm)
Maximum payload per pallet: 200 lb (90 kg) (includes both workpiece and fixturing)
Haas Automation+1
UMC-500 Machine Specs:
Travel range:
X-axis: 24″
Y-axis: 16″
Z-axis: 16″
Spindle:
Max Spindle Speed: 15,000 RPM 30HP HSK63A
Axes details:
B-axis (tilt): ±120°, up to 179°/sec, high torque (~1854 ft-lb)
C-axis (rotation): full 360°, same speed and torque specs
Tool changer:
70+1 side-mount Automatic Tool Changer (SMTC)
Equipped With (subject to buyer verification):
Haas CNC Control
Wireless Intuitive Probing System (WIPS)
Programmable coolant nozzle
Chip conveyor
Rigid tapping
Tool center point control
Dynamic work offsets
Power-failure detection
USB interface
High-speed machining capability
