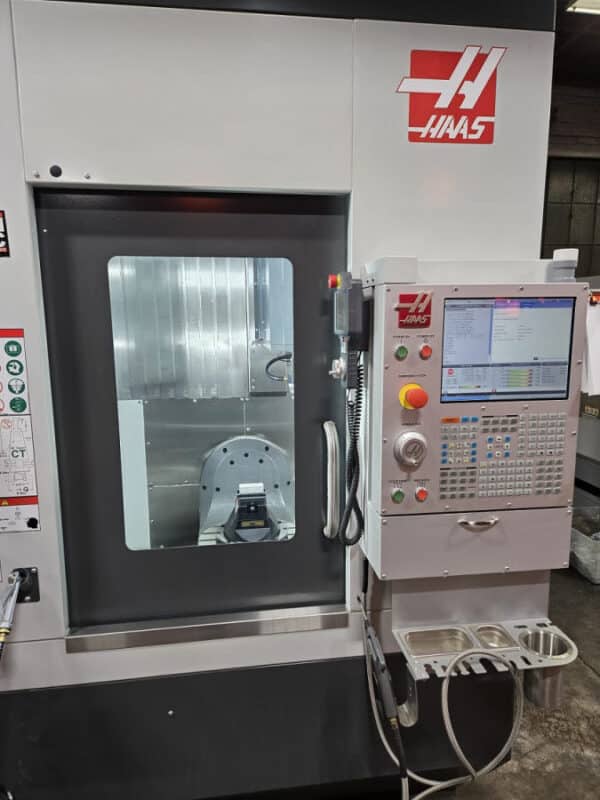

Haas UMC500SS 5-Axis Mill
Specifications
Table Size 15.7″
Max Table Load Capacity 500 lb
Product Distance From Table Top Spindle Nose 4-20″
X Axis Travel 24″
Y Axis Travel 16″
Z Axis Travel 16″
B Axis Travel 120 to -35 DEG
Main Spindle RPM 12,000 RPM
Rapid Traverse Rate X 1200 IPM
Rapid Traverse Rate Y 1200 IPM
Rapid Traverse Rate Z 1200 IPM
Number of Tool Stations 30
Maximum Tool Diameter 2.5″
Max Tool Dia Adjacent Pocket Empty 5″
Maximum Tool Length 12″
Maximum Tool Weight 12 lb
Spindle Taper CAT 40
Equipped With:
Haas CNC Control
Coolant Thru Spindle
Tooling Pass Thru
Chip Conveyor
