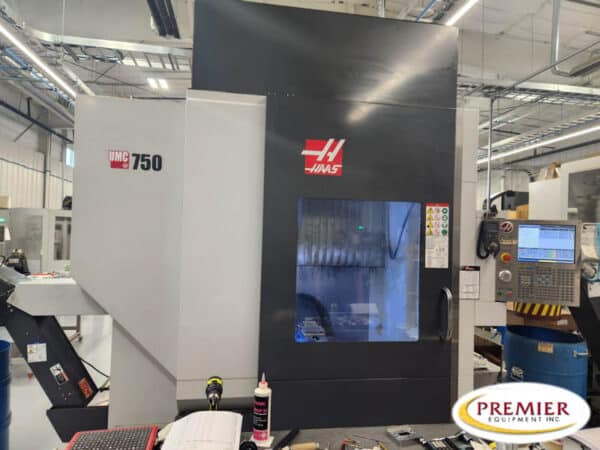

Haas UMC750 5-Axis CNC Mill
CNC Vertical Machining Center
Specifications (subject to buyer verification):
TRAVELS
X Axis 30 “
Y Axis 20 “
Z Axis 20 “
Spindle Nose to Table (~ max) 24 “
Spindle Nose to Table (~ min) 4 “
PLATTER
Platter Length 24.8 “
Platter Width 19.7 “
Max Weight on Platter 660 lb
T-Slot Width 5/8 “
T-Slot Center Distance 2.48 “
Number of Std T-Slots 7
B AXIS – TILT
Travel +110°, -35°
Max Speed 50°/sec
Max Torque 400 ft-lb
Brake Torque 1800 ft-lb
C-AXIS – ROTATION
Travel 360°
Max Speed 50°/sec
Max Torque 300 ft-lb
Brake Torque 500 ft-lb
SPINDLE (OPT)
Max Rating 30 hp
Max Speed 12000 rpm
Max Torque 90 ft-lb @ 2000 rpm
Drive System Inline Direct-Drive
Bearing Lubrication Air/Oil Injection
Cooling Air
Capacity 40+1
Equipped With (subject to buyer verification):
Haas CNC Control
12,000 RPM, 30HP
1GB Standard Memory
Belt-Type Chip Conveyor
CAT
Dynmaic Work Offset & Tool Ctr Pt Ctrl
Ethernet Interface
Haas Connect Option
Second Home Position
High Speed Machining
Media Display M-Code
Programmable Coolant Nozzle
Remote Jog Handle, Color LCD
Rigid Tapping
40+1 Side Mount Tool Changer
Through Spindle Coolant, 300 PSI
WIPS-R – Intuitive Probing, Renishaw
