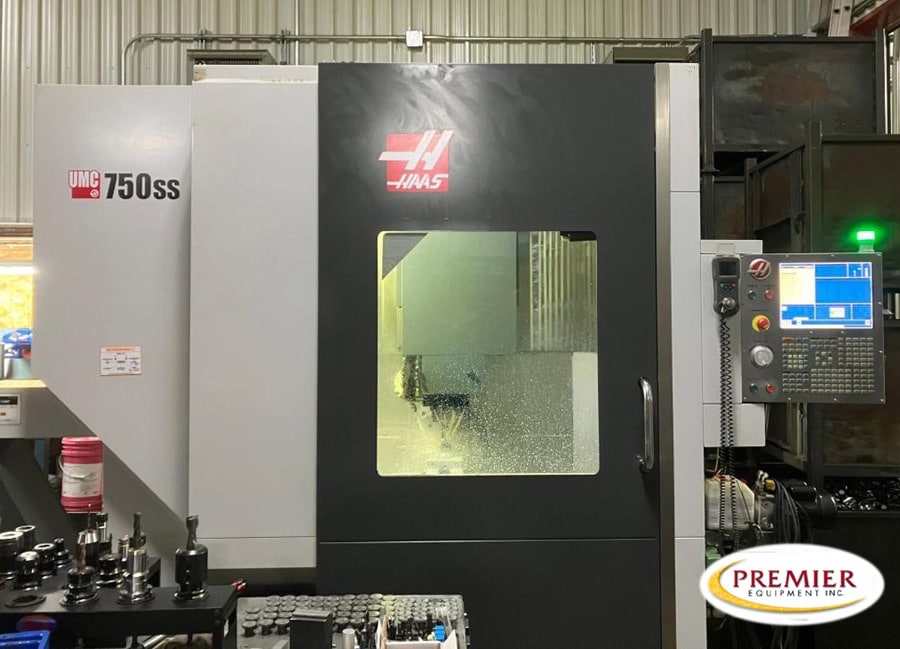

Haas UMC750SS 5-Axis CNC Vertical Machining Center – 2015
Specifications (subject to buyer verification):
TRAVELS
X Axis 30.0 in
Y Axis 20.0 in
Z Axis 20.0 in
Spindle Nose to Platter (~ max) 24.0 in
Spindle Nose to Platter (~ min) 4.0 in
SPINDLE
Max Rating30.0 hp
Max Speed 12000 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm
Drive SystemInline Direct-Drive
Taper CT40
B AXIS – TILT
Travel120 ° to 35- °
Max Speed170 °/sec
Max Torque2240 ft-lbf
Brake Torque2000 ft-lbf
C AXIS – ROTATION
Travel360 °
Max Speed179 °/sec
Max Torque1854 ft-lbf
Max Part Swing27.0 in
Brake Torque 900 ft-lbf

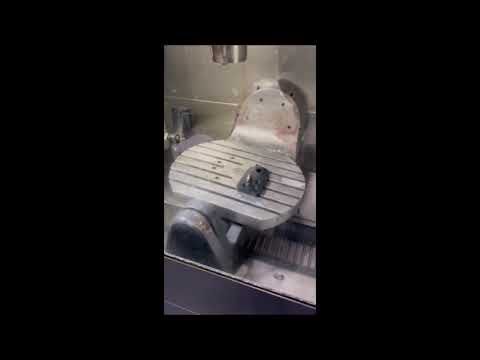

PLATTER
Platter Diameter19.70 in
Max Weight on Platter660 lb
T-Slot Width 0.626 in to 0.630 in
T-Slot Center Distance2.48 in
Number of Std T-Slots7
TypeSMTC
Capacity40+1
Equipped With (subject to buyer verification):
Haas CNC Control
Thru Spindle Coolant
WIPS with Renishaw OMP40 and Renishaw OTS
CAT40
Chip Conveyor
Remote Jog Handle
40 ATC
