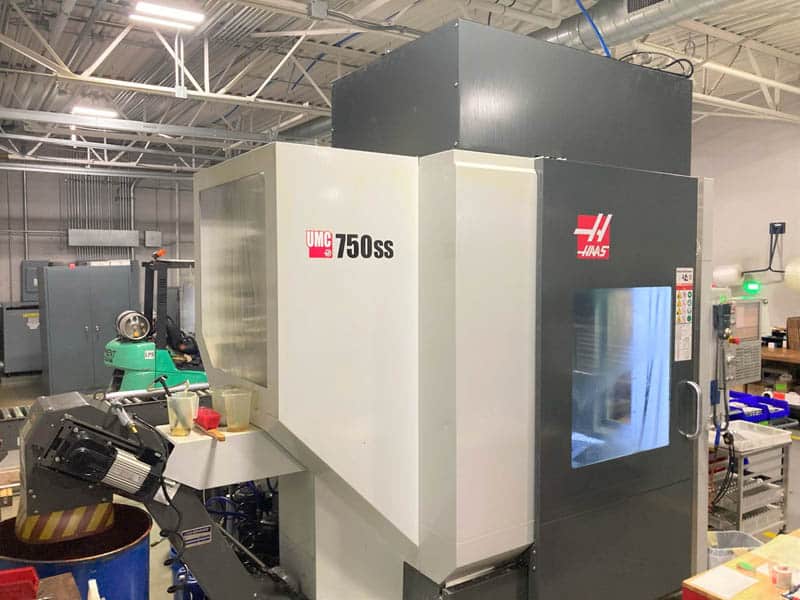

Haas UMC750SS 5-Axis CNC Vertical Machining Center
Specifications (subject to buyer verification):
TRAVELS
X Axis30.0”
Y Axis 20.0”
Z Axis 20.0”
Spindle Nose to Platter (~ max) 24.0”
Spindle Nose to Platter (~ min) 4.0”
SPINDLE
Max Rating30.0 hp
Max Speed15000 rpm??
Max Torque90 ft-lbf @ 2000 rpm
Drive SystemInline Direct-Drive
Taper
Bearing LubricationAir / Oil”jection
CoolingLiquid Cooled
B AXIS – TILT
Travel110 ° to 35- °
Max Speed150 °/sec
Max Torque1200 ft-lbf
Brake Torque4300 ft-lbf
C AXIS – ROTATION
Travel360 °
Max Torque450 ft-lbf
Max Part Swing27.0”
Brake Torque3300 ft-lbf
Max Speed150 °/sec
PLATTER
Platter Diameter19.70”
Max Weight on Platter660 lb
T-Slot Width0.630”
T-Slot Center Distance2.48”
Number of Std T-Slots7
FEEDRATES
Max Cutting650 ipm
Rapids on X1200 ipm
Rapids on Y1200 ipm
Rapids on Z1200 ipm
TOOL CHANGER
TypeSMTC
Capacity40+1
Max Tool Diameter (full)3.0”
Max Tool Diameter (adjacent empty)5.0”
Max Tool Length (from gage line)12”
Max Tool Weight12 lb
Tool-to-Tool (avg)2.3 s
Chip-to-Chip (avg)3.2 s
GENERAL
Coolant Capacity75 gal
AIR REQUIREMENTS
Air Required4 scfm @ 100 psi
Equipped With (subject to buyer verification):
Haas CNC Control
40 ATC
Chip Conveyor
Remote Jog Handle
St. Light
Renishaw Tool Presetter
15k RPM ??
