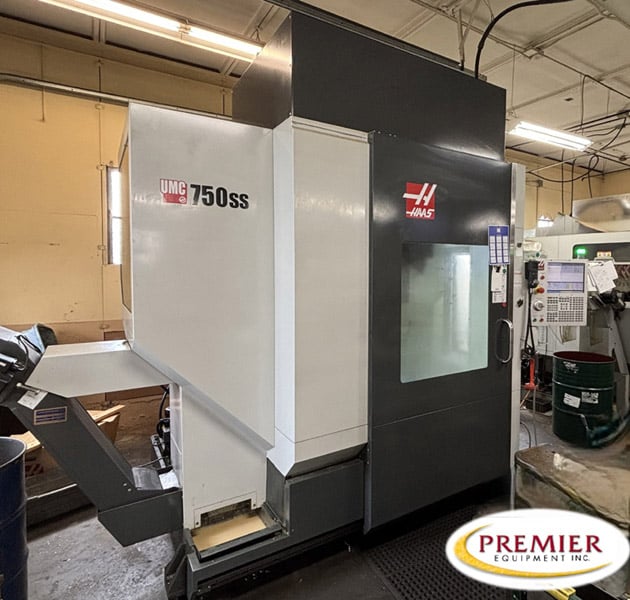

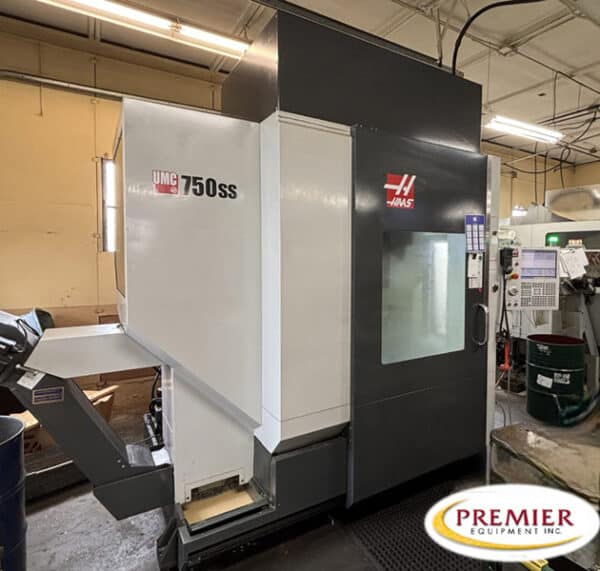

Haas UMC750SS 5-Axis CNC Vertical Machining Center
Specifications (subject to buyer verification):
TRAVELS
X Axis: 30.0”
Y Axis: 20.0”
Z Axis: 20.0”
SPINDLE
Max Rating: 30.0 hp
Max Speed: 15000 rpm
Taper
Max Part Swing: 27.0”
PLATTER
Platter Diameter: 19.70”
Max Weight on Platter: 660 lb
TOOL CHANGER
Type: SMTC
Capacity40+1
Equipped With (subject to buyer verification):
Haas CNC Control
CT-Style Tool Changer Grippers Included
15,000-rpm Spindle Included
Thru Spindle Coolant Installed xx,xxx PSI
Standard Program Memory, 1 GB Included
Dynamic Work Offsets and Tool Center Point Control Included
Early Power-Failure Detection Module Included
Ethernet Interface Included
HaasConnect: Remote monitoring Included
Second Home Position Included
High-Speed Machining Included
Media Display M-Code; M130 Included
Remote Jog Handle with Touchscreen Display Included
Rigid Tapping Included
40+1 Side-Mount Included
Top Cover with Mist Extraction Provision Included – No mist system installed
WiFi Connection for the Haas Control Included
Wireless Intuitive Probing System Included
