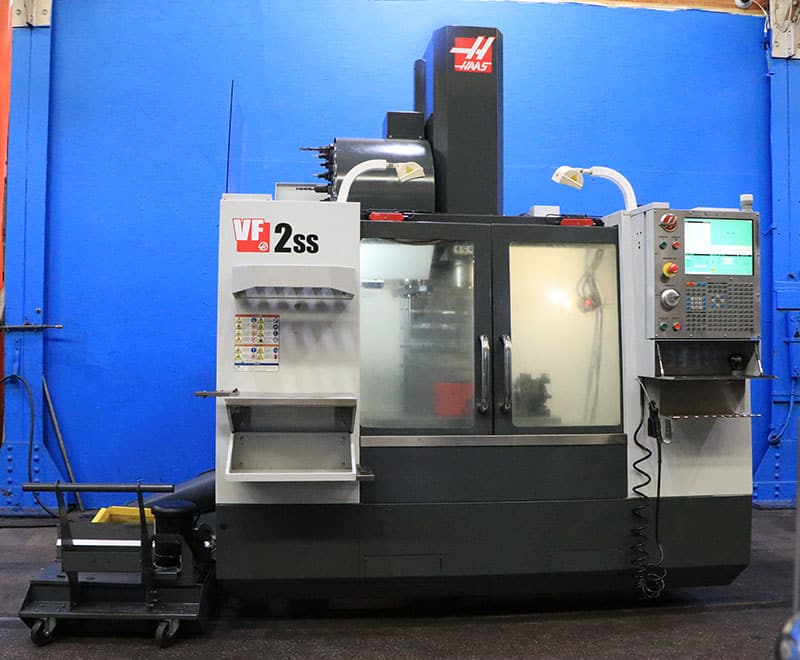

HAAS VF 2SS CNC Mill
VERTICAL MACHINING CENTER
SPECIFICATIONS:
X-AXIS TRAVEL ……………….. 30″ 762mm
Y-AXIS TRAVEL ……………….. 16″ 406mm
Z-AXIS TRAVEL ……………….. 20″ 508mm
SPINDLE SPEED ……………….. 12,000 RPM
SPINDLE MOTOR ……………….. 40 HP
SPINDLE DRIVE ……………….. INLINE DIRECT DRIVE
SPINDLE TAPER ……………….. CT 40
TOOL MAGAZINE CAPACITY ……….. 24 ATC
MAXIMUM TOOL DIAMETER/WEIGHT ….. 3.0″ / 12 LBS
RAPID TRAVERSE RATES …………. 1400 IPM
TABLE SIZE ………………….. 36″ X 14″
TABLE LOAD CAPACITY ………….. 1500 LBS
MACHINE DIMENSIONS: ………….. 89″ x 92″ x 104″H
MACHINE WEIGHT: ……………… 8,000 LBS
EQUIPED WITH:
HAAS CONTROL
RIGID TAPPING, ROTATION & SCALING, QUICK CODE,
SPINDLE ORIENTATION, HIGH SPEED MACHINING,
USER-DEFINABLE MACROS, DNC ENABLED
ADV TOOL MGMT, INTUITIVE PART PROGRAMMING
HAAS 4TH AXIS DRIVE AND WIRING
RENISHAW INTUITIVE PROGRAMING SYSTEM (WIPS)
5C 4th AXIS COLLET CLOSER
COOLANT SYSTEM
CHIP AUGER
24 + 1 TOOL SIDE-MOUNTED TOOL CHANGER
