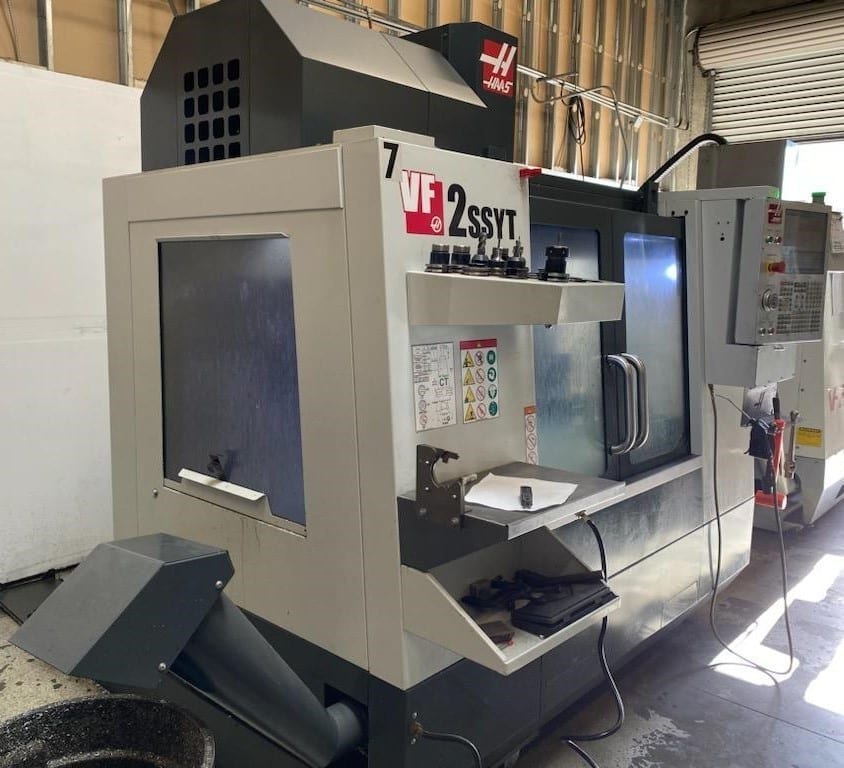

Haas VF2SSYT CNC Mill
Specifications (subject to buyer verification):
Travels
X Axis 30”
Y Axis 20”
Z Axis 20”
Spindle Nose to Table (~ max) 24”
Spindle Nose to Table (~ min) 4”
Table
Length 36”
Width 18”
T-Slot Width 5/8
T-Slot Center Distance 4.92”
Number of Std T-Slots 3
Max Weight on Table (evenly distributed) 1500 lb
Spindle
Max Rating 30 hp
Max Speed 12000 rpm
Max Torque 90 ft-lb @ 2000 rpm
Drive System Inline Direct-Drive
Taper CT
Bearing Lubrication Air/Oil Injection
Cooling Liquid Cooled
Feedrates
Rapids on X 1400 in/min
Rapids on Y 1400 in/min
Rapids on Z 1400 in/min
Max Cutting 833 in/min
Tool Changer
Type SMTC
Capacity 24+1
Max Tool Diameter (adjacent empty) 5”
Max Tool Diameter (full) 3”
Max Tool Length (from gage line) 11”
Max Tool Weight 12 lb
General
Air Required 4 scfm, 100 psi
Equipped With (subject to buyer verification):
HAAS CONTROL
Side Mount ATC
12K RPM
CHIP AUGER
WIRED FOR 4TH AXIS
PREPPED FOR THRU SPINDLE COOLANT
AUTO AIR GUN
ENCLOSED EXHAUST
PROGRAMMABLE COOLANT
32GB MEMEORY
HIGH SPEED MACHINING
ALL AVAILABLE TOOLING AND MANUALS
