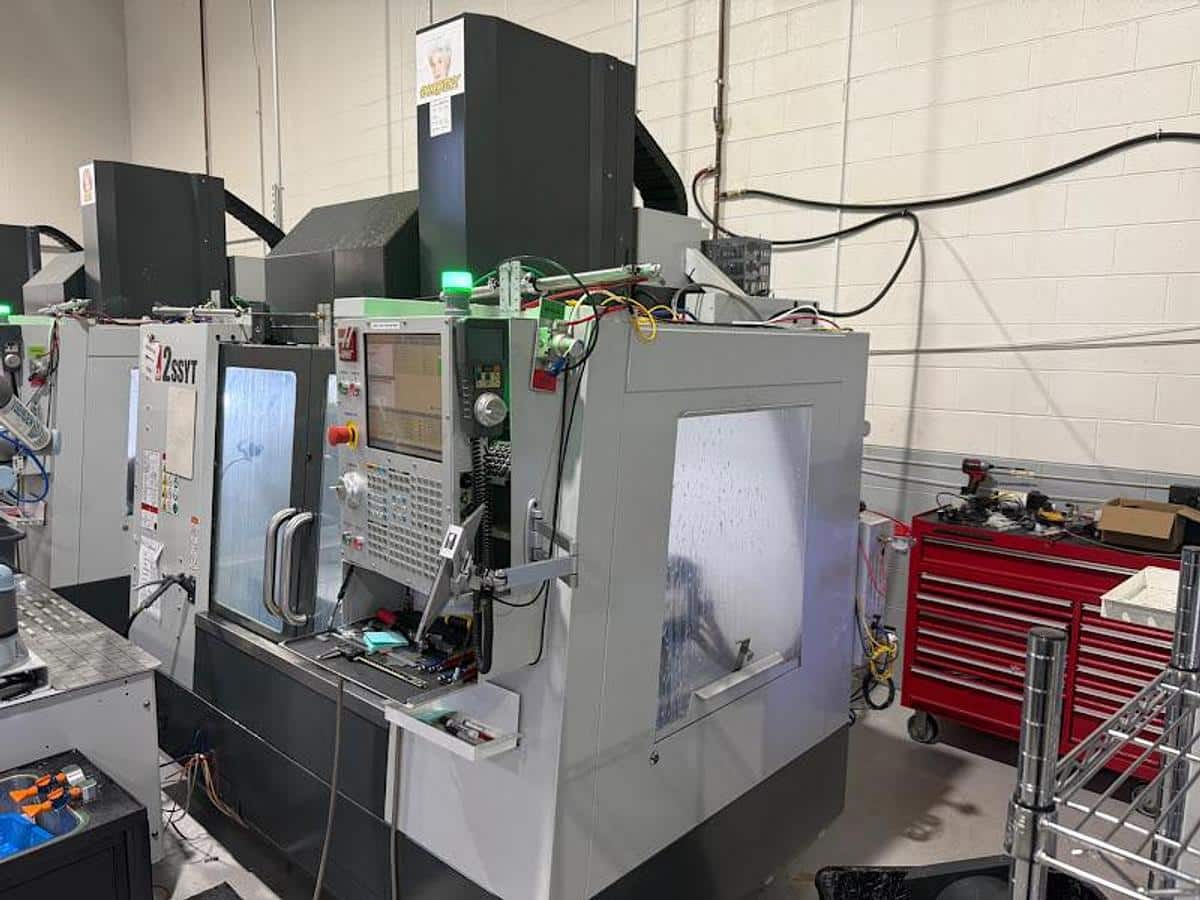

Haas VF-2SSYT – 2021

X Axis Travel: 30″
Y Axis Travel: 20″
Z Axis Travel: 20″
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36″ x 18″
Max Table Load: 1,500 Lbs.
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 50+1 ATC
Max Cutting: 833 ipm
Max Thrust X: 1995 lbf
Max Thrust Y: 1995 lbf
Max Thrust Z: 3085 lbf
Max Tool Weight: 12 lb.
Tool-to-Tool (avg): 2.8 s
Chip-to-Chip (avg): 3.6 s
Dimensions: 106″ x 101″ x 101″
Weight: 7,800 Lbs.
Equipped with:
Through-Spindle Coolant, 300PSI
4th-Axis Drive And Wiring
Wireless Intuitive Probing System
Multi Chip Removal System Auger
Automatic Air Gun
Auto Door
Programmable Coolant Nozzle
Coordinate Rotation And Scaling
Dynamic Work Offsets And Tool Center Point Control
Second Home Position
High-Speed Machining
User-Definable Macros
Spindle Orientation
Visual Part Programming System
Auxiliary Coolant Filter
Chip Tray Filter Kit
