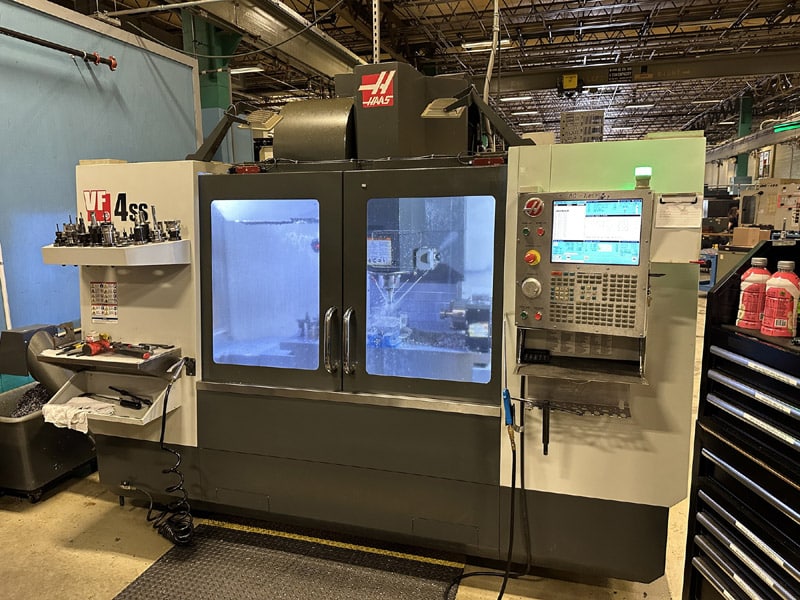

Haas VF4SS CNC Mill
CNC Vertical Machining Center
CNC Vertical Machining Center
Specifications (subject to buyer verification):
TRAVELS
X Axis50.0”
Y Axis20.0”
Z Axis25.0”
Spindle Nose to Table (~ max)29.2”
Spindle Nose to Table (~ min)4.2”
SPINDLE
Max Rating30.0 hp
Max Speed12000 rpm
Max Torque90 ft-lbf @ 2000 rpm
Drive SystemInline Direct-Drive
TaperCAT40
TABLE
Length52.0”
Width18.0”
T-Slot Width0.630”
T-Slot Center Distance3.15”
Number of Std T-Slots5
Max Weight on Table (evenly distributed)1750 lb
FEEDRATES
Max Cutting833 ipm
Rapids on X1400 ipm
Rapids on Y1400 ipm
Rapids on Z1400 ipm
TOOL CHANGER
TypeSMTC
Capacity24+1
Max Tool Diameter (full)2.5”
Max Tool Diameter (adjacent empty)5.0”
Max Tool Length (from gage line)13”
Max Tool Weight12 lb
Tool-to-Tool (avg)2.8 s
Chip-to-Chip (avg)3.6 s
Equipped With (subject to buyer verification):
Haas CNC Control
4th Axis Drive and Wiring
Chip Auger
Programmable Coolant Nozzle
WIPS-R – Intuitive Probing, Renishaw
30 Station Sidemout ATC
HRT210 Rotary Table
High Speed Machining
Thru Spindle Coolant @ 300 PSI
