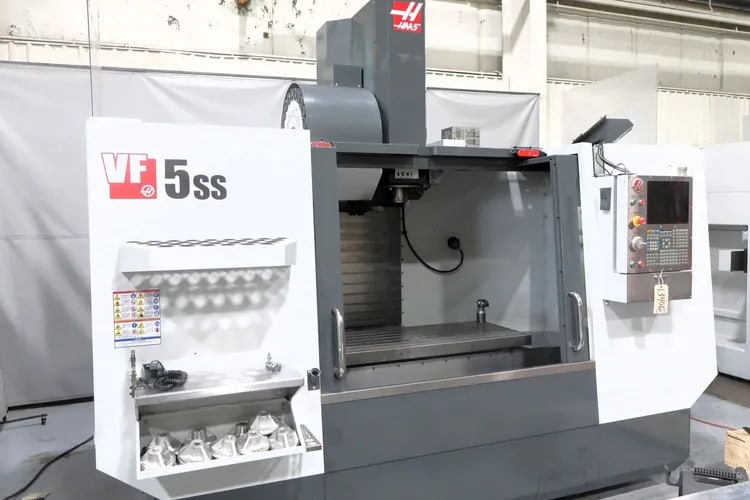

HAAS VF5SS/40
Specs:
X Axis Travel: 50″
Y Axis Travel: 26″
Z Axis Travel: 25″
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 BT
Tool Changer: 24 ATC
Max Cutting: 500 ipm
Max Thrust X: 2550 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 4100 lbf
Max Tool Diameter: 3.5″
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Table Size: 54″ x 24″
EQUIPPED WITH:
Haas CNC Controls
15,000 rpm Spindle
– Side Mount tool changer – 24 tools
– multi Auger Chip removal
750 MB expanded memory
Ethernet interface
– Programmable coolant nozzle
– High Speed Machining
– Remote Jog handle with touchscreen display
– rigid Tapping
– Chip Strainer
– Wireless Intuitive probing system
New 2015
