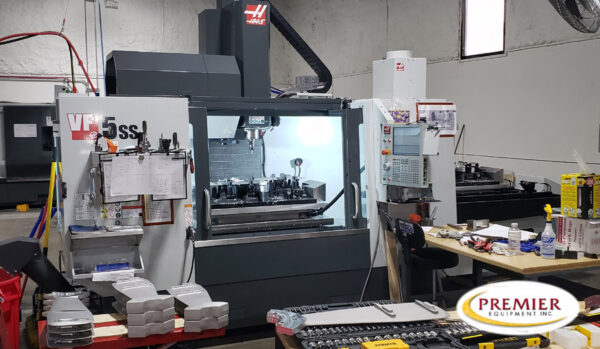

Haas VF5SS (2-Pallet) CNC Vertical Machining Center
Specifications (subject to buyer verification):
TABLE
Width: 23″ (584 mm)
Length: 52″ (1321 mm)
Maximum Weight on Table: 1750 lb (794 kg)
T-slot Width: 0.625″ (15.875 mm)
Center Distance: 3.15″ 4 (80 mm)
TRAVELS
Maximum X axis: 50″ (1270 mm)
Maximum Y axis: 26″ (660 mm)
Maximum Z axis: 25″ (635 mm)
Spindle nose to table: 7″– 32″ (178 – 813 mm)
SPINDLE
Taper Size: #40 Taper
Spindle Speed: 0 to 12,000 rpm
Max Power Rating: 30 hp (22.4 kW)
Max Torque: 90 ft-lb (122 Nm) @ 2000 rpm
Spindle Bearings: ABEC Class 7
Spindle Orientation: Electronic
TOOL CHANGER
Fully Enclosed Tool Storage
Tool Capacity: 30+1
Tool Type: CT40
Maximum Tool Diameter: 3″ (76 mm) with all pockets full
6″ (152 mm) with adjacent pockets empty
Maximum Tool Weight: 12 lb (5.4 kg) with all pockets full
Tool Changer Type: All electric, bidirectional
Equipped With (subject to buyer verification):
Haas CNC Control
12,000-rpm Spindle, 40 taper, 30 hp (22.4 kW) vector drive, inline direct-drive;
Standard Program Memory, 1 GB
Early Power-Failure Detection
Ethernet Interface
Haas Connect
HaasDrop Wireless File Transfer
Media Display M-Code
Rigid Tapping; synchronized tapping
Safe Run
High-Speed Side-Mount Tool Changer, 40 taper, 30+1 tools
Touch Screen interface for the Haas control
WiFi Connection for the Haas Control
TSC – Through-Spindle Coolant
WIPS-R – Wireless Intuitive Probing System
AUGER – Auger
P-COOL – Programmable Coolant Nozzle
HSM – High-Speed Machining
APC-Ready
Midaco Pallet Sywstem S5025 w/Hydraulic Docking System
