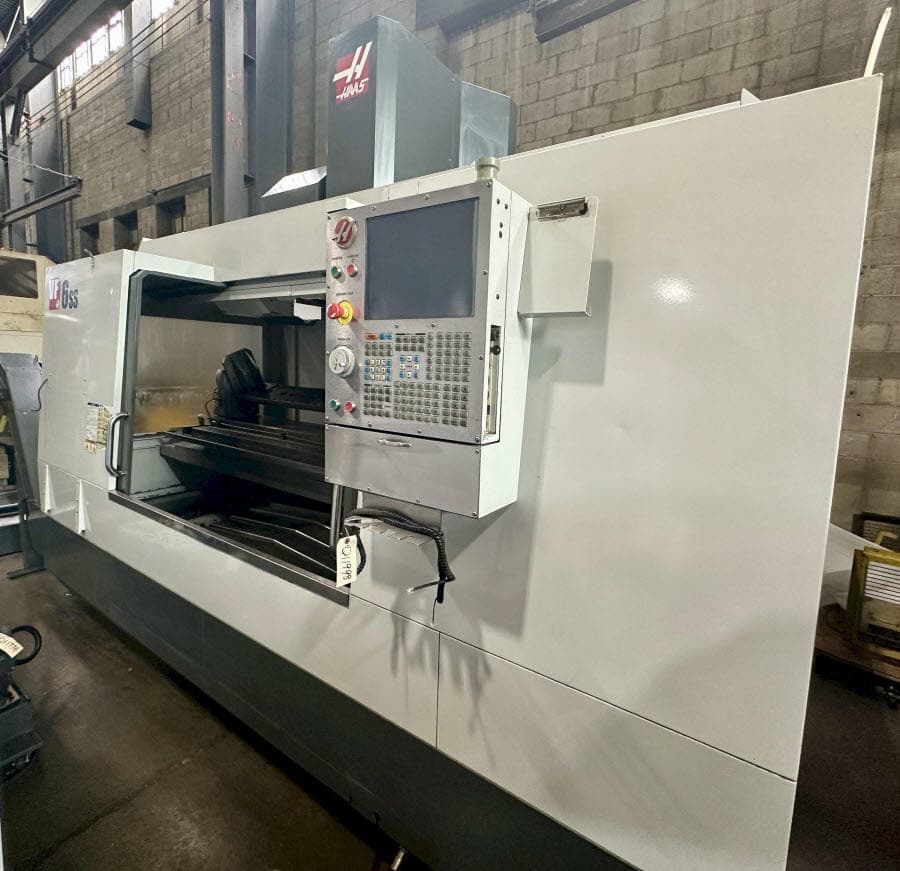

HAAS VF6SS 4-AXIS CNC Mill
VERTICAL MACHINING CENTER
VERTICAL MACHINING CENTER
SPECIFICATIONS:
CNC Control: yes
Type of CNC Control: Haas CNC Control
# Axis: 4
Table Length: 64″
Table Width: 28″
Table Load Capacity: 2,000 LBS
X-Axis (Longitudinal Travel): 64″
Y-Axis (Cross Travel): 32″
Z-Axis (Vertical Travel): 30″
Max Clearance Tabletop to Spindle Nose: 34″
Min Clearance Tabletop to Spindle Nose: 4″
Feed Rates, All Axes: 833 IPM
X-Axis Rapid Traverse Rate: 900 IPM
Y-Axis Rapid Traverse Rate: 1200 IPM
Z-Axis Rapid Traverse Rate: 1200 IPM
Spindle Power: 40 HP
Max Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40
Torque, Up To: 90 FT-LBS @ 2000 RPM
Automatic Tool Changer Capacity (ATC): 24
Automatic Tool Changer Style: Side-Mount
Electrics: 440/3/60
Approximate Machine Dimensions: 204″ x 108″
Approximate Machine Height: 123″
Approximate Machine Weight: 22,300 LBS
EQUIPPED WITH:
Haas CNC Control, 12″ HRT-310 Haas 4th Axis Rotary Currently Set Up as a Trunnion with a 39″ x 9″ Table, 12000 Max RPM Spindle, Programmable Coolant Nozzle, Chip Conveyor & Coolant Tank.
