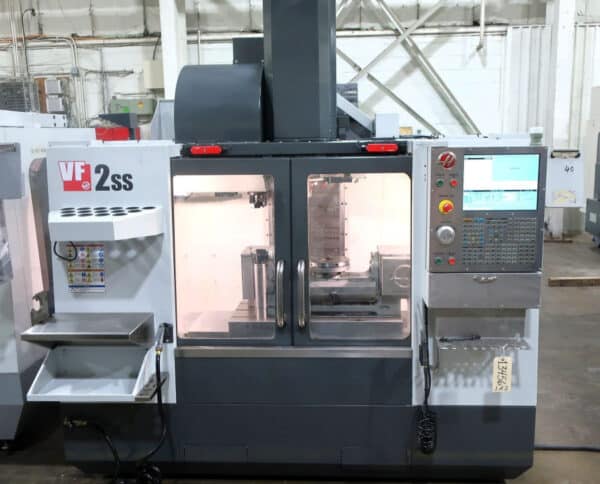

HAAS VF2SS 5-AXIS SUPER SPEED VERTICAL MACHINING CENTER
SPECIFICATIONS:
Travels
X-Axis 30″
Y-Axis 16″
Z-Axis 20″
Spindle Nose to Table (- min) 4″
Spindle Nose to Table (- max) 24″
Table:
Length 36″
Width 14″
T-Slot Width 5/8″
T-Slot Center Distance 4.92″
Number of Std T-Slots 3
Max. Weight on Table (evenly distributed) 1,500 lbs.
Spindle:
Max. rating 30 HP
Max. speed 12,000 RPM
Max. Torque 90 ft-lb @ 2000 RPM
Drive System inline direct-drive
Taper BT 40
Bearing lubrication Air/Oil injection
Cooling Liquid/Cooled
Feedrates:
Rapids on X 1000 in/min
Rapids on Y 1000 in/min
Rapids on Z 1000 in/min
Max. Cutting 833 in/min
Tool Changer:
Type SMTC
Capacity 24+1
Max. Tool Diameter (adjacent empty) 5″
Max. Tool Diameter (full) 3″
Max. Tool length (from gage line) 11″
Max. Tool weight 12 lb.
Tool-to-Tool (avg) 1.6 sec.
Chip-to-Chip (avg) 2.2 sec.
General:
Air required 4 scfm, 100 PSI
Coolant capacity 55 gal
Machine weight 8,000 lbs
EQUIPPED WITH:
CNC Control
TR160H Trunnion table
24 position side mount tool changer
renishaw probe
thru spindle coolant 300psi
programable coolant nozzle
chip auger
coolant filter
misc tool holders included
