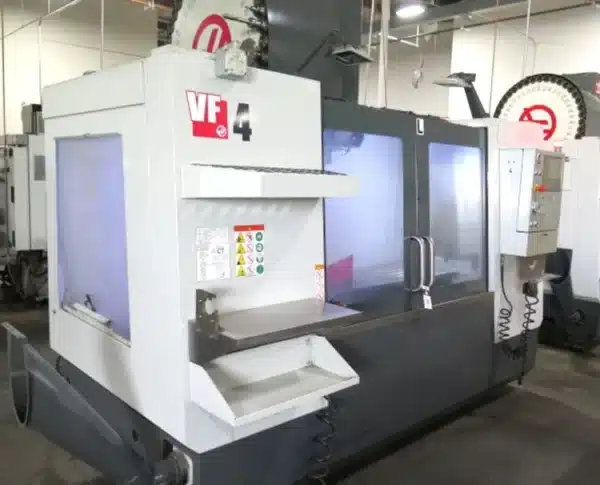

HAAS VF4 CNC Mill
SPECIFICATIONS:
Travels:
X-Axis 50″
Y-Axis 20″
Z-Axis 29″
Spindle Nose to Table (- max.) 29″
Spindle Nose to Table (- min.) 4″
Table:
Length 52″
Width 18″
T-Slot Width 5/8″
T-Slot Center Distance 3.15″
Number of Std T-Slots 5
Max. Weight on Table (Evenly distributed) 3500 lbs.
Spindle:
Max Rating 30 HP
Max. Speed 10,000 RPM
Geared Drive
Taper CT40
Feedrates:
Rapids on X 1000 in/min
Rapids on Y 1000 in/min
Rapids on Z 1000 in/min
Max. Cutting 650 in/min
Axis Motors:
Max. Thrust X 2,550 lb
Max. Thrust Y 2,550 lb
Max. Thrust Z 4,200 lb
Tool Changer:
Side Mount
Capacity 40
Max. Tool Diameter (Full) 3.5″
Max. Tool Weight 12 lb
Tool-to-tool (avg) 4.2 sec
Chip-to-chip (avg) 4.5 sec
General:
Air required 4 SCFM,100 PSI
Coolant capacity 55 Gal
EQUIPPED WITH:
10,000 RPM CT40 Spindle, Geared Drive
40 Position ATC side mounted
4th axis drive and wiring (rotary table not included)
Programmable Coolant nozzle
Rigid Tapping
Chip auger
1 GB memory
ethernet
Haas connect
High intensity lighting
High speed machining
window blast
