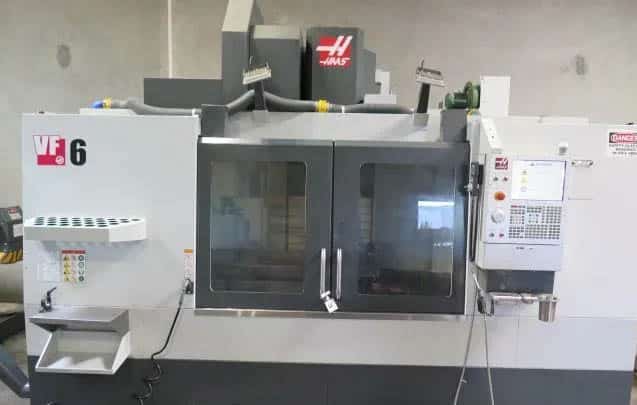

HAAS VF6/40 CNC Mill
Specifications:
X-Axis Travel: 64.00″
Y-Axis Travel: 32.00″
Z-Axis Travel: 30.00″
Spindle Nose to Table: 4.0″ – 34.0″
Spindle Speed: 8,100 RPM
Spindle Motor: 30 hp
Spindle Taper: CAT-40
Max Torque: 90 ft-lb @ 2,000 RPM (250 ft-lb with optional gearbox)
Tool Changer: 50+1 Side-Mount ATC
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (Adjacent Empty): 5.0″
Max Tool Length: 16″
Max Tool Weight: 12 lbs
Tool-to-Tool Time: ~2.8 sec
Chip-to-Chip Time: ~3.6 sec
Table Size: 64″ x 28″
Max Table Load: 4,000 lbs
Rapid Traverse (X/Y/Z): 600 IPM
Max Cutting Feedrate: 500 IPM
Coolant Capacity: 95 gallons
Air Requirement: 4 scfm @ 100 psi
Electrical: 220 VAC, 70 A (3-phase)
Machine Weight: 22,300 lbs
Options:
Digital Hand Wheel: Included
Tool Changer: 50-Station Side-Mount ATC
Spindle Taper: CAT-40
Spindle Speed: 8,100 RPM
Probe System: Renishaw Wireless System
Tool Presetter: Renishaw OTS Tool Presetter
Work Probe: Renishaw CAT-40 Taper Touch Probe
Thru-Spindle Coolant: Included
Rigid Tapping: Yes
Coolant Nozzle: Programmable
User Macros: Included
Rotation and Scaling: Included
Spindle Orientation (M19): Yes
High-Speed Machining: Enabled
VPS Editing: Included
Memory: 32GB
Wireless Networking: Included
Compensation Tables: Yes
Mist Extraction: Haas Mist Condenser
Chip Removal: Chip Auger
Coolant System: High Flow Coolant
