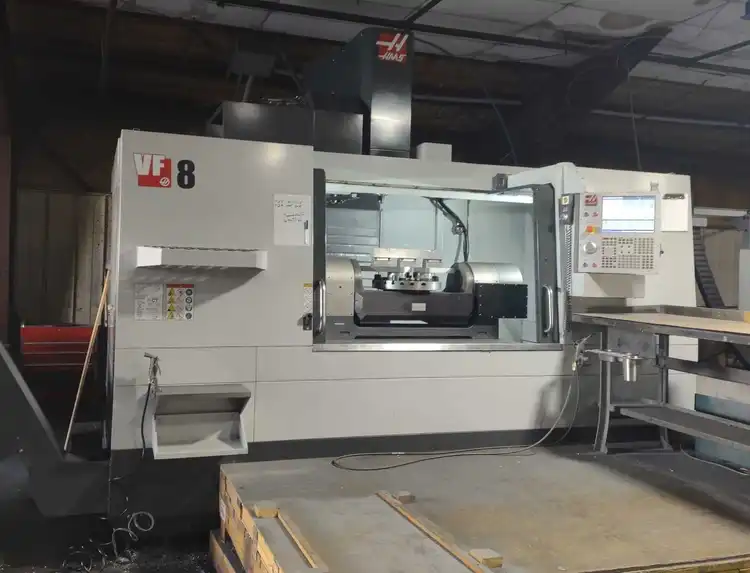

HAAS VF8/40TR
SPECIFICATIONS:
X-Axis Travel: 64″
Y-Axis Travel: 40″
Z-Axis Travel: 30″
Table Size: 64″ x 36″
Max Table Load: 4,000 Lbs
Rapid Rate X/Y/Z Axis: 600 IPM
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 Taper
Auto Tool Changer: 50 +1 Positions
Approx Dimensions: 193″ x 120″ x 138″
Approx Weight: 25,000 Lbs
Equipped With:
300 PSI Through Spindle Coolant
4th & 5th Axis
TR310 310mm (12.2″) Tilting 2-Axis Trunnion Rotary Table
Wireless Intuitive Probing System
Multi-Auger Chip Conveyor System
EC8 – Additional Z Axis Clearance
High Speed Machining
G254 Dynamic Work Offsets and G234 Tool Center Point Control
Auxiliary Coolant Filter
Chip Strainer
Probe Riser Block
500mm Platter
