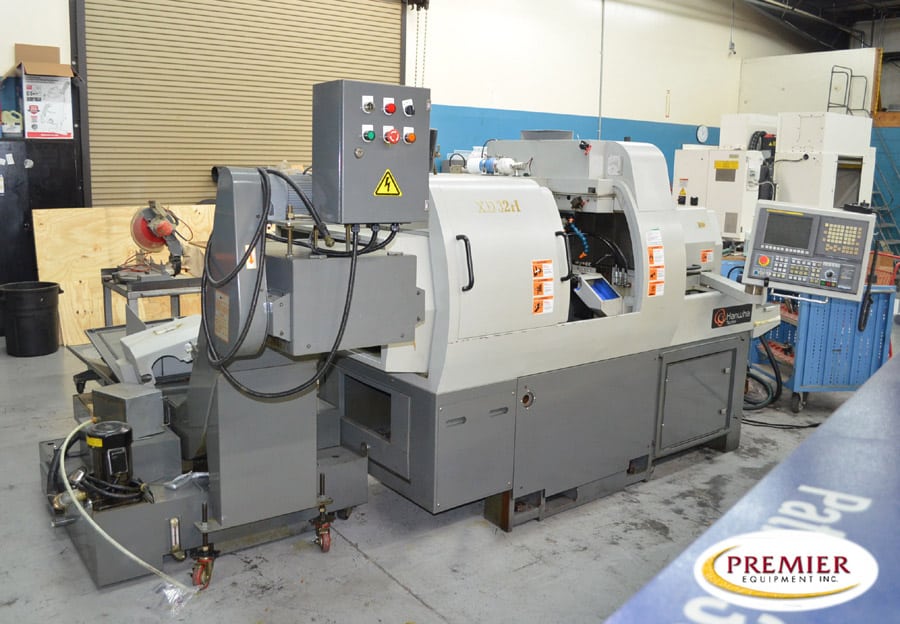

Hanwha XD32H CNC Swiss Lathe
SPECIFICATIONS:
General Specifications:
Machining Capacity
Max Bar Capacity Round: 1.25″
Max Bar Capacity Hex: 1.062″
Max Bar Capacity for the Sub Spindle: 1.25″
Tapping Capacity on the Main Spindle: 0.312″
Front Ejection from the Sub Spindle: 3.0″
Rear Ejection from the Sub Spindle: 11.0″
Drilling Capacity on the Sub Spindle: .393”
Tapping Capacity on the Sub Spindle: .312”
Drilling Capacity on the Cross Drill: 0.275″ / 0.393″
Tapping Capacity on the Cross Tap: 0.250″
Main Spindle
Spindle Speed: 300 – 8,000 RPM
AC Spindle Drive Core Motor: 7.5 HP
C Axis Control Minimum Programmable Angle: 0.001 Deg.
C Axis Locking Gear: Every 1.0 Degree
Z1-Axis Horsepower: 2.0 HP
Z1 Axis Stroke: 12.50″
Z1 Axis Rapid Traverse: 1,200 IPM
Sub Spindle
Spindle Speed: 300 – 7,000 RPM
AC Spindle Drive Core Motor: 3 HP
C Axis Control Minimum Programmable Angle: 0.001 Deg.
C Axis Magnetic Brake: Every 1.0 Degree
Z2-Axis Horsepower: 2.0 HP
Z2-Axis Stroke: 12.50″
Z2- Axis Rapid Traverse: 1,200 IPM
Cross Working Spindles
Spindle Speed: 200 – 6,000 RPM
AC Spindle Drive Geared: 1.7 HP
Tool Position
OD Tool Positions: 5
OD Tool Shank: 0.625” Sq.
Cross Mill / Drill Stations: 4
Main Spindle ID Tool Positions Total (ER16 Type): 7
(5) Stationary from the Main Tool Stand
(2) Powered Face Mill / Drill Stations Independent from the Main Tools
Sub Spindle ID Tool Positions Total (ER-16 Type): 9
(5) Stationary from the Main Tool Stand
(2) Stationary Independent from the Main Tools
(2) Gear Driven Independent from the Main Tools to 6000 RPM
Machine Dimensions: 65″ x 94″ x 69″
Barfeed Dimensions: 16′ x 2′ x 4.25′, 2500 lbs
Mist Collector: 20″ x 16″ x 26″, 80lbs
High pressure: approx, 52” x 19” x 44” , 300 lbs
Machine Weight: 9,500 lbs
CAPACITY 1.25″
POWER 7.5 hp
RPM 8,000 RPM
# AXIS 5
SWISS, CHUCKER OR CONVERTIBLE? Swiss
MAIN SPINDLE INDEXING Full C
SUB SPINDLE INDEXING Full C
LIVE BACK WORKING TOOLS? Yes
CONTROL CNC
DIMENSIONS 65x94x69″
WEIGHT 9500#
EQUIPPED WITH:
Fanuc CNC Control
Parts Catcher/Conveyor
LNS Fox WS330 Mist Collector
Edge Patriot 338 Magazine Bar Loader
High Pressure Coolant System
