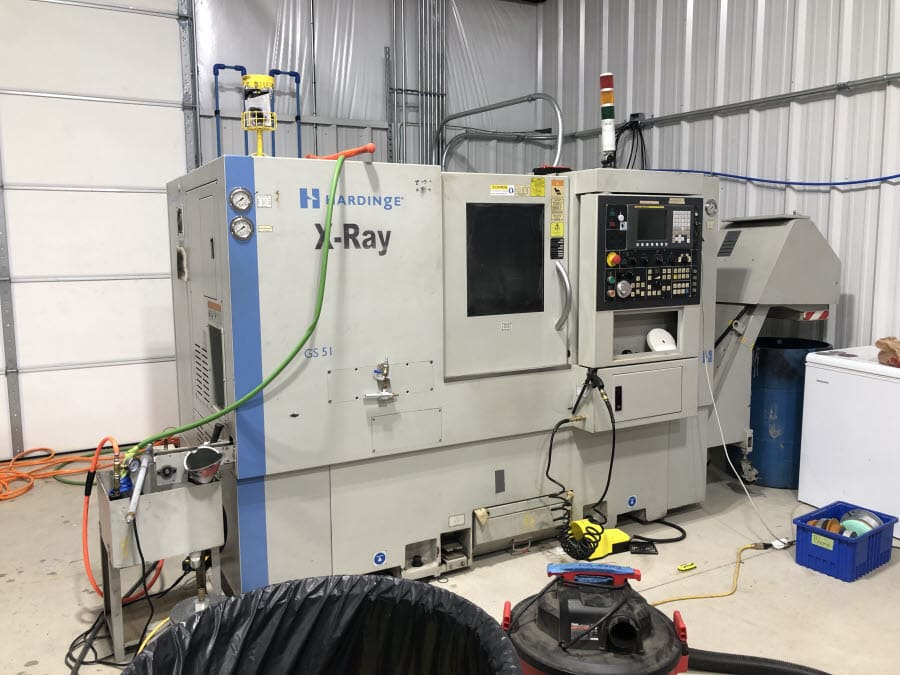

Hardinge GS51 Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
Carriage and Cross Slide
Swing Dia. Over Way Cover – Max.17.99”
X Axis Travel Max5.75”
Z-Axis Travel Max15.98”
Traverse X and Z1181 IPM
Spindle
Collet Ready Spindle Config – ANSIA2-6 / 20C
Draw Tube TypeHydraulic
Through Draw Tube Capacity2”
Gripping Capacity with Step Chuck & Closer5.9”
Machining Diameter – Max11.18”
Turning Length – Max15.98”
Hang Weight with Device & Component105 lbs
Spindle Centreline Height39.37”
Operator’s Reach to Spindle11.02”
Spindle
Peak Power Rating14 HP
Torque Rating111 ft/lbs
Max Speed5000 RPM
Turret
No. of Stations12
Live Tooling4.9 HP
Live Tooling Speed5000 RPM
Dimensions
Machine97” (135” with CC) x 63” x 70”
Equipped With (subject to buyer verification):
Fanuc Series Oi-TD CNC Control
Sub Spindle
Milling
Chip Conveyor
Parts Catcher and Exit Conveyor
