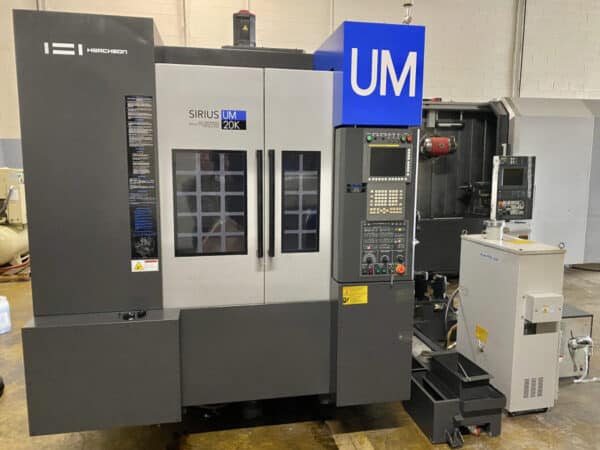

HWACHEON SIRUS UM HIGH SPEED DIE MOLD CNC 4 AXIS VERTICAL MACHINING CENTER
SPECIFICATIONS:
Number Of Tables / Pallets: 1
Table Size : 33.46″ X 19.68″
Weight On Table: 1760 LBS
Integrated NC Rotary Table Size: 0
Spindle Nose To Table: 5.9″ ~ 23.6″
X – Axis Travel: 29.5″
Y – Axis Travel: 19.6″
Z – Axis Travel: 17.71″
A – Axis Travel: 0
B – Axis Travel: 0
C – Axis Travel Table Indexing: 0
Rapid Traverse X, Y, Z: 945,945,945 IPM
Cutting Feed Rate: 945 IPM
Spindle Speed: 20,000 RPM
Spindle Taper: 40
Number Of Gear Ranges: 0
Main Motor: 30 HP
Vertical Turning Table Size, Number Of Tables: 0
Table Spindle Speed Vertical Turning: 0
Table Spindle Horse Power Vertical Turning: 0
Automatic Tool Changer: 30 ATC
Tool Diameter: 3.53, 4.8″
Tool Length: 11.7″
Tool Weight: 17.6 LBS
Machine Weight: 17,600 LBS
EQUIPPED WITH:
FANUC 31I-A CNC CONTROL
SPINDLE CHILLER
ALL AVAILABLE MANUALS
ADDITIONAL BLOCK SKIP
PROGRAMMABLE MIRROR IMAGE
HAND HELD REMOTE MPG
EMBEDDED ETHERNET AND FAST ETHERNET SOFTWARE
HELICAL INTERPOLATION
CUSTOM MACRO / MACRO EXECUTER
200 TOOL OFFSET PAIRS
COORDINATE SYSTEM ROTATION
DATA SERVER FUNCTION
A1 CONTOUR CONTROL II
HIGH SPEED HRV3 FUNCTION
TOOL OFFSET MEMORY C
TOOL NOSE RADIUS COMP
PREPPED AND WIRED FOR 4TH AXIS
THRU SPINDLE COOLANT
GRAPHIC FUNCTION
SCALE FEEDBACK SYSTEM X, Y, Z AXIS
