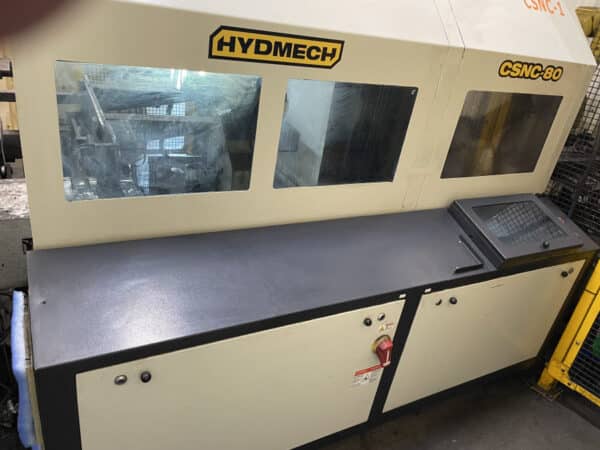

HydMech CSNC-80 Carbide Circular Saw
Specifications (subject to buyer verification):
Cutting Capacity Round 90°: 0.4″-3.15″
Cutting Capacity Square 90°: 0.4″-2.36″
Blade Drive: 15 HP VFD
Blade Speed: 50-200 MPM
Blade Size: Carbide/ Cermet tipped: 285 mm x 1.7 mm kerf
Bar Stock Length: 10′-20′
Trim Cut: Zero or programmable from 0.4′ or longer
Cut off Length: Min 0.24” up to 39”
Single Stroke: 40″
Remnant Length: 3.35” + cut length + cutter thickness
Hydraulic Motor: 3 HP
Bar Loading Magazine: Inclined storage width of 27.9″ for rounds
Machine Capacity: 6,613 lbs.
Machine Weight: 6613 lbs.
Dimensions (w x l x h) : 85” x 102” x 88″
Equipped With (subject to buyer verification):
Mitsubishi PLC Controller allows for 200 programs to be saved
Job monitoring with cycle time, job duration, parts count and AMP load setting to protect the saw blade.
Heavy duty saw head is driven by ball screw and AC servo drive
Patent pending blade cooling system.
PLC controlled automatic oil lubrication of all moving parts
Variable vise pressure control with dial gauge – two stations
Cooling nozzle
Blade lubrication features triple jet system to lubricate blade. If the coolant level gets low, the machine will alarm to alert the operator.
Hydraulic rotating wired chip brush rotates in both directions for proper chip removal
Chip auger
Bundle Loader
Filtermist FX6002 with prefilter and HEPA filter
