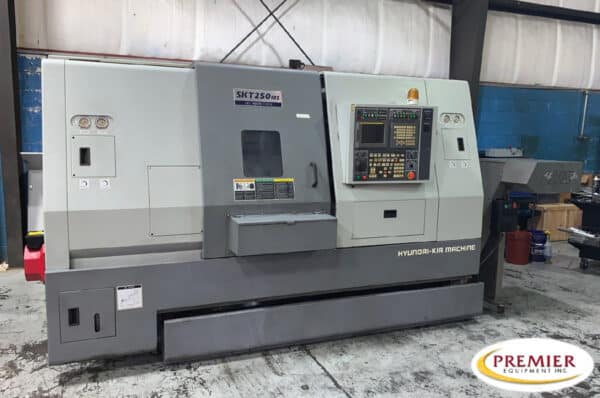

Hyundai-Kia SKT250MS Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
MACHINE CAPACITY:
SWING OVER THE CROSS………………. 29.5″
MAXIMUM TURNING DIAMETER…………… 16.1″
MAXIUM TURNING LENGTH……………… 26.7″
X-Axis Travel…………………….. 11.4″
Z-Axis Travel…………………….. 29.5″
B-Axis Travel…………………….. 27.6″
Rapid Traverse X, Z, B…………….. 787 / 945 / 787 IPM
MAIN SPINDLE:
SPINDLE NOSE……………………… A2-8
SPINDLE BORE……………………… 3.47″
Bar Capacity……………………… 3″
MAXIMUM SPINDLE SPEED……………… 3,500 RPM
MAIN SPINDLE MOTOR………………… 30/25 HP
SUB SPINDLE:
SPINDLE NOSE……………………… A2-6
SPINDLE BORE……………………… 3.07″
Bar Capacity……………………… 2.5″
MAZIMUM SPINDLE SPEED……………… 4,000 RPM
SUB SPINDLE MOTOR…………………. 15/10 HP
TURRET…………………………… 12 POSITIONS
MILLING TOOL SPEEDS……………….. TO 4,000 RPM
MILLING TOOL MOTOR………………… 7/5 HP
Floor Space………………………. 136” x 78” x 79”
Weight…………………………… 15,432 lbs
Equipped With (subject to buyer verification):
Fanuc Series 18i-TB
Tool Presetter
Chip Conveyor
Milling
Sub Spindle
