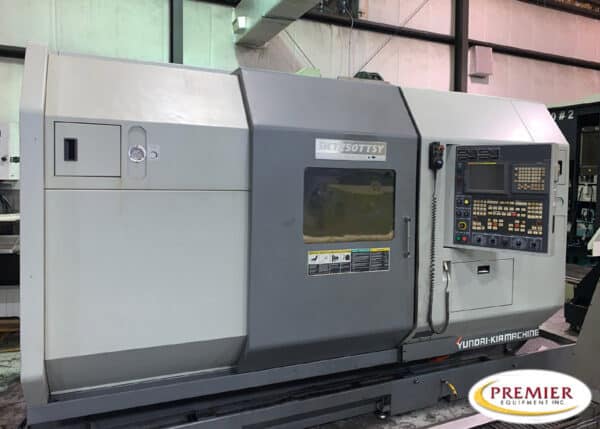

Hyundai-Kia SKT250TTSY Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
Max Swing: 30.7”
Swing Over Saddle: 27.5”
Max Turning Dia (Upper/Lower): 15.4” / 11.8”
Max. Turning Length: 36.2”
Bar Capacity (1st Spindle) : 3”
Bar Capacity (2nd Spindle: 3”
Rapid Traverse X1/X2-Axis: 945 / 945 IPM
Rapid Traverse Z1/Z2-Axis: 945 / 945 IPM
Rapid Traverse Y-Axis: 472 IPM
Rapid Traverse B-Axis: 945 IIPM
Travel X1/X2-Axis: 10.6” / 7.5”
Travel Z1/Z2-Axis: 36.2” / 36.2”
Travel Y-Axis: +/- 2.3”
Travel B-Axis: 36.6”
1st Spindle Speed: 4000 RPM
1st Spindle Motor: 33 / 20 HP
1st Spindle Nose: A2-8
1st Spindle Bore: 3.4”
2nd Spindle Speed: 4000 RPM
2nd Spindle Motor: 33 / 20 HP
2nd Spindle Nose: A2-8
2nd Spindle Bore: 3.4”
Upper Turret No. of Turret Stations: 12
Upper Turret Max Milling Speed: 4000 RPM
Lower Turret Stations: 12
Lower Turret Max Milling Speed: 4000 RPM
Floor Space: 171” x 85” x 100”
Weight: 22,000 lbs
Equipped With (subject to buyer verification):
Fanuc Series 18i-TB
(2) 10” Chucks
(2) 12 St. Turrets
Chip Conveyor
Milling Both Turrets
