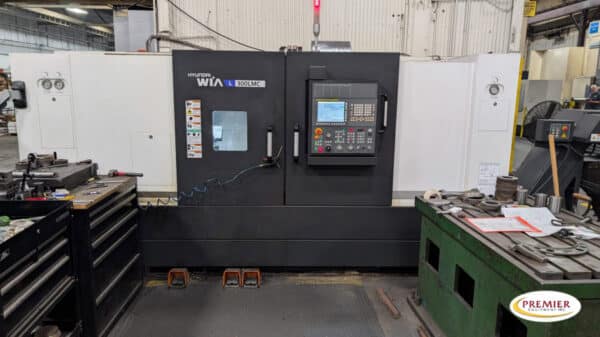

Hyundai Wia L300LMC CNC Turning Center
Specifications (subject to buyer verification):
Swing Over the Bed: 29.5”
Swing Over the Carriage: 18.9”
Max. Turning Dia.: 19.7”
Max Turning Length: 49.6”
Bar Capacity: 4”
Spindle Bore: 4.5”
Spindle Speed: 2800 RPM
Motor: 30 HP
Spindle Nose: A2-11
X Axis Travel: 14”
Z Axis Travel: 53.1”
No. of Tool: 12
Milling: 4000 RPM / 7.5 HP
Equipped With (subject to buyer verification):
Fanuc Series 32i Control
4” Big Bore Option
15” Chuck
Heavy Duty 12 Station BMT65 Turret
Live Tool: Max 4000 RPM / 7.5 HP
Solid Box Way Construction
Belt Driven Spindle
Spindle Orientation
Manual Tool Setter
Programmable Tailstock (Tow Along Type)
Right Side Hinge Type Chipo Conveyor
