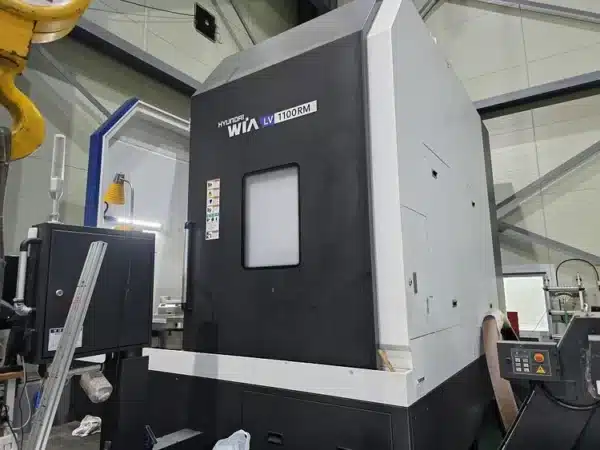

HYUNDAI WIA LV1100RM CNC Vertical Boring Mill with milling
SPECIFICATIONS:
TABLE DIAMETER 32″
TABLE LOAD CAPACITY 4,400 lb
SWING DIAMETER 53.3″
TURNING HEIGHT 39.4″
TABLE SPEED 800 RPM
MAIN MOTOR 80 hp
NUMBER OF RANGES 2
X – AXIS TRAVEL 24.4″
Z – AXIS TRAVEL 39.4″
RAPID TRAVERSE RATE – X 945 ipm
RAPID TRAVERSE RATE – Z 945 in/min.
C – AXIS INDEXING .001
ROTARY SPINDLE SPEED 3,000 RPM
ROTARY SPINDLE HORSEPOWER 15 hp
TURRET CONFIGURATION 12 station
MACHINE WEIGHT 48,501 lb
CONTROL CNC (FANUC 32I B CNC COLOR CONTROL)
EQUIPPED WITH:
FANUC 32i B CNC COLOR CONTROLLER
32″ 3 JAW HYDRAULIC CHUCK
40″ 4 JAW MANUAL CHUCK INCLUDED
REMOVABLE TOOL SETTER
(1) I.D. ROTARY MILL HEAD
(1) O.D. ROTARY MILL HEAD
CHIP CONVEYOR SYSTEM
TELESCOPIC GUARDS & COOLANT SHEILDS
COOLANT SYSTEM
FULL ENCLOSURES
MANUAL GUIDE I
ALL AVAILABLE MANUALS
