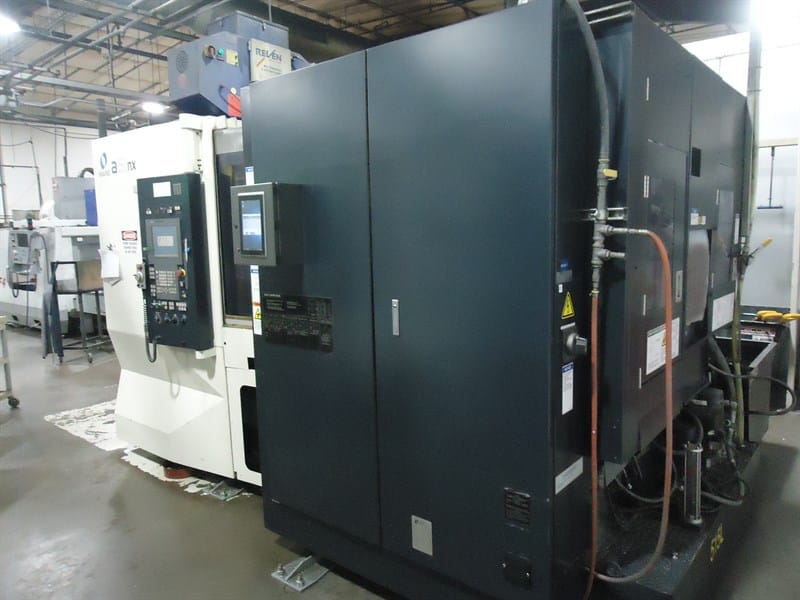

Makino A51NX – 2012

YouTube video

MAKINO A51NX CNC 4 AXIS HORIZONTAL MACHINING CENTER
Specs
Pallet Size 15.7″ x 15.7″
Number Of Pallets 2
Pallet Weight Capacity 880
Pallet Surface to Spindle Center 3.1″ ~ 28.3″
Pallet Center To Spindle Gage Line 3.9″ ~ 29.1″
X – Axis Travel 22″
Y – Axis Travel 25.2″
Z – Axis Travel 25.2″
B – Axis Travel .001 N/C CONTOURING
Rapid Traverse Rates X, Y, Z 2360 IPM
Cutting Feed Rate 1968 IPM
Spindle Speed 14,000 RPM
Spindle Taper 40
Main Motor 30 HP
Automatic Tool Changer 60
Tool Diameter 3.76″, 6.7″
Tool Length 16.9″
Tool Weight 26.4″ LBS.
Tool Change Time .9 SEC.
Machine Weight 19,620
Equipped with
1 MEG OF MEMORY 1000 PSI COOLANT THRU THE SPINDLE
12.1 COLOR LCD / 320 METERS 200 PROGRAMS
200 TOOL OFFSETS 2-PALLET CHANGER
AIR DRYER SYSTEM ALL AVAILABLE MANUALS
BALL SCREW CORE COOLING BLUM LASER PART PROBE TC 50
BLUM LASER TOOL LENGTH MEASUREMENT BTSOMA BROKEN TOOL SENSOR ATC
CHIP REMOVAL SYSTEM CUSTOM MACRO 100 VARIABLES
DATA CENTER 4MB EXTERNAL SETTING ORIENTATION
FANUC 31I CNC CONTROL WITH PRO 5 FULL 4TH AXIS N/C ROTARY TABLE
GI.4 HELICAL INTERPOLATION
HIGH SPEED SKIP FUCTIONS MIST COLLECT SYSTEM
PORTABLE HAND HELD MPG TOOL OFFSET MEMORY C
