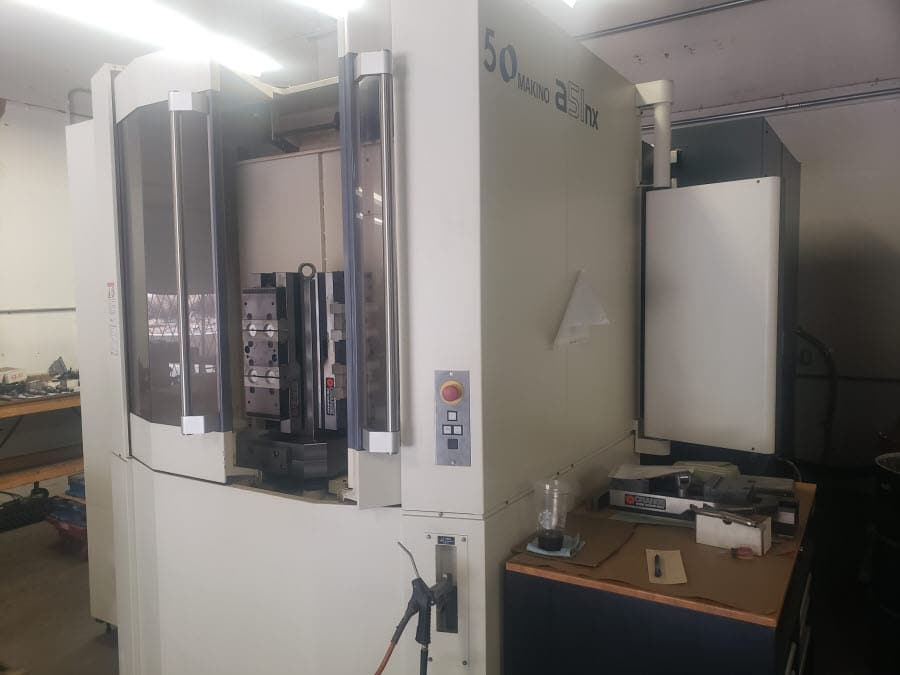

MAKINO A51NX
Pallet Load Capacity 880 lbs.
Pallet Size 15.7″ (2)
X-Axis 22″
Y-Axis 25.19″
Z-Axis 25.19″
Pallet Index .001 Degrees
Spindle Speed 14,000
Spindle Taper 40
Spindle Motor 30 HP
Tools 60
Rapid Traverse Rates 2360 IPM
Max Tool Diameter 6.7″
Max Tool Length 16.9″
Max Tool Weight 26.4 lbs.
Max Workpiece Diameter 24.8″
Machine Weight 20,000
Features:
Professional 6 (Fanuc 31iM) CNC Control
Mayfran Concep Conveyor
.001
60 ATC
