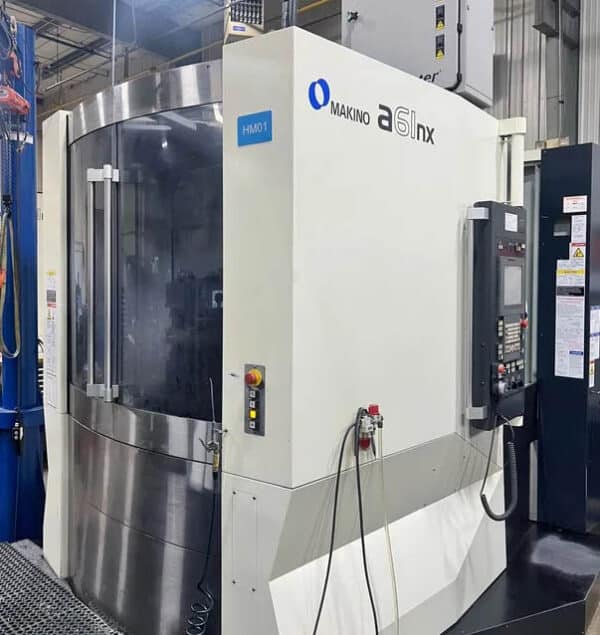

MAKINO A61NX
Specifications:
PALLET WIDTH 19.7″
PALLET LENGTH 19.7″
PALLET INDEXING FULL 4TH
NUMBER OF PALLETS 2
MAX WORKPIECE WEIGHT 1,212 lb
X-AXIS TRAVEL 28.7″
Y-AXIS TRAVEL 25.6″
Z-AXIS TRAVEL 31.5″
SPINDLE SPEED 14,000 RPM
SPINDLE MOTOR 35 hp
SPINDLE TAPER CAT 40
TOOL POSITIONS (ATC) 60
Equipped With:
PRO 5 CONTROL
BOX WAYS
FULL 4TH AXIS
THROUGH-SPINDLE COOLANT & AIR (300 PSI)
PQI/RENISHAW OMP400 RENGAGE PROBING SYSTEM
14,000 RPM SPINDLE (CAT 40)
60 TOOL POSITIONS
MISTBUSTER MIST COLLECTOR
CHIP CONVEYOR (LEFT DISCHARGE)
600 MACRO CUSTOM VARIABLES
HIGH-SPEED SKIP FUNCTION
