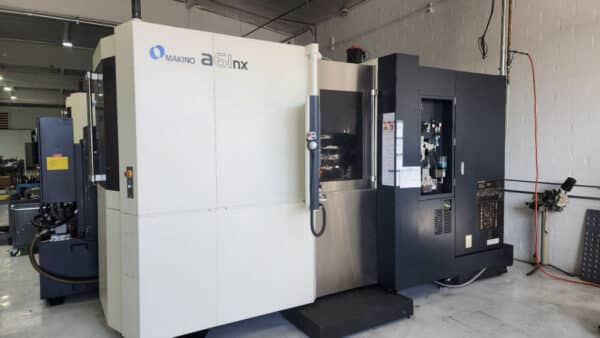

Makino a61nx CNC Horizontal Machining Center
Specifications (subject to buyer verification):
Pallet:19.7″ x 19.7″
X-Axis Travel: 28.7″
Y-Axis Travel:25.6″
Z-Axis Travel: 31.5″
B-Axis: 360° DD NCRT
Spindle RPM: 14,000 rpm
Spindle Taper: CAT40
Rapid Traverse: 2,362ipm
Cutting Feedrate: 1,968 ipm
Maximum Workpiece: ø31.5″ x 39.4″
Maximum Payload: 1,100 lbs
ATC Capacity: 60 tools
Tool to Tool: 0.9 sec
Chip to Chip: 2.5 sec
Maximum Tool Diameter: 8.1″
Maximum Tool Weight: 26.4 lbs
Dimensions: 115” x 192”
Weight: 26,500 lbs
Equipped With (subject to buyer verification):
Pro 6 CNC Control
Chip Conveyor
