Makino D500 (2-Pallet) – 2011

YouTube video

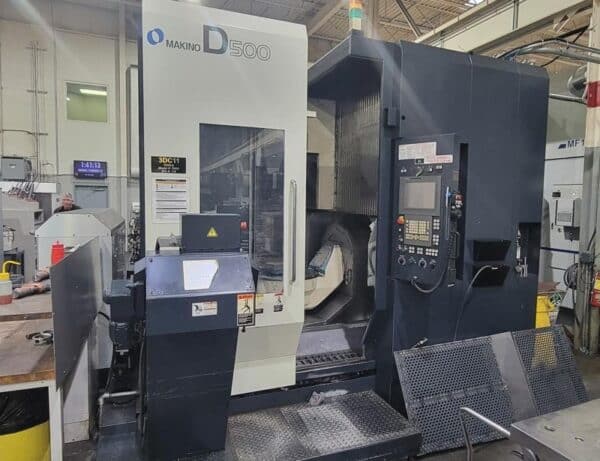

Makino D500 (2-Pallet) 5-Axis CNC Vertical Machining Center
Specifications (subject to buyer verification):
Pallet Size 15.7” x 15.7” (400mm)
Pallet Load Capacity 661 lbs
Distance Floor to Pallet Top 43.3”
Axis Travel X, Table Longitudinal 21.6”
Axis Travel Y, Spindle Cross 39.4”
Axis Travel Z, Spindle Vertical 19.7”
Axis Travel A, Table Tilt 150° (+30° to -120°)
Axis Travel C, Table Rotation 360°
Spindle Speed 20,000 RPM
Spindle Motor 25 / 20 HP
Spindle Taper HSK63
ATC Stations 113 ATC
Max Tool Length 11.8”
Max Tool Weight 17.6 lbs

Equipped With (subject to buyer verification):
Professional 5 CNC Control
Pallet Changer
113 tool matrix magazine
Probe Ready
HSK63 20k spindle
