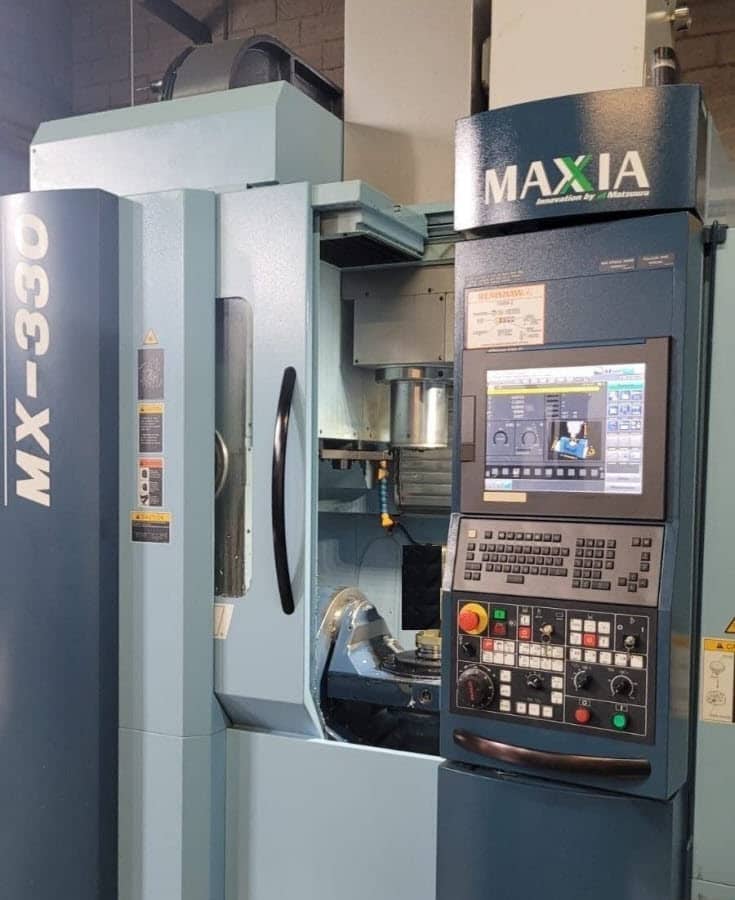

MATSUURA MX330 PC10 5-Axis CNC Mill
SPECIFICATIONS:
MAX WORK SIZE mm (in) Ф330 × Н320 (Ф12.99 x H12.60)
$420 × H320 (Ф16.54 x H12.60) *with conditions
Ф330 × Н300 (Ф12.99 x H11.81)-PC10
WORKING SURFACE mm (in) Ф250 (Ф9.84) – Standard
LOADING CAPACITY kg (lb)
TOOL TAPER
NUMBER OF TOOLS
Ф250 (Ф9.84) + Table through – Option
6port
80 (176.37)
90: BT40 – Option
SPINDLE SPEED RPM 20,000
TRAVEL (X/Y/Z) mm (in)
TRAVEL (A/C)
RAPID TRAVERSE (X/Y/Z) m/min (ipm)
RAPID TRAVERSE (A/C) minNC SYSTEM
INDUSTRIES
15,000: BT40 – Standard
15,000 PowerUp: BT40- Option
20,000: BT40 – Option
435/465/560 (17.13/18.31/22.05)
-125~+10/360
40 (1,574.80)
17/33
Matsuura G-Tech 31i
Automotive and High Performance, Die / Mold, Medical
EQUIPPED WITH:
Mat G-Tech 31i
20 000 Rpm Air/Oil Spindle
90 ATC
Tool Probe
Part Probe
10 Pallet Changer
Mist Collector
Chip Auger
Thru Spindle Coolant 300psi
Air Dryer
