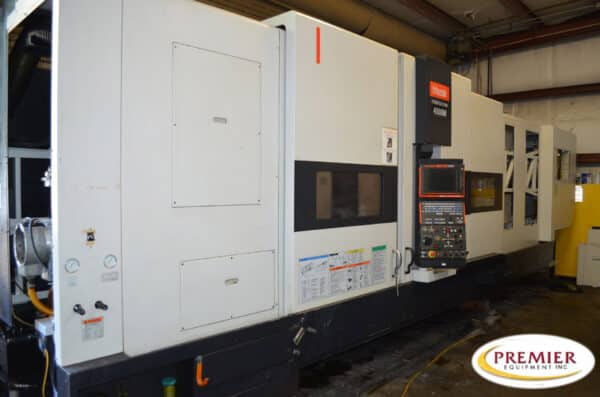

Mazak Cybertech Turn 4500M Heavy-Duty CNC Lathe
Specifications (subject to buyer verification):
Maximum Swing Diameter………………………. 33.8″
Swing Over Carriage…………………………….. 27.5″
Swing Over Carriage with Steady Rest………. 20.87″
Max. Cutting Diameter………………………….. 31.9″
Max. Cutting Length: 120″……………………………………………. 120″
MAIN SPINDLE SPECIFICATIONS – OPTIONAL 7.28″ SPINDLE BORE:
Spindle Nose………………………………………. A1-15
**Spindle Bore………………………………………. 7.28″
**Bar Capacity……………………………. 4.62”
Spindle Speed/Range……………………………. 1,600 RPM/2
Spindle Horsepower (Cont/30 mins.)…………. 40/50 HP (AC)
Spindle Torque (30 min.)……………………….. 3,320 ft-lbs
TURRET AND TOOLING SPECIFICATIONS
Number of Tools………………………………….. 12 Bolt On
AXIS TRAVELS
Travel X-Axis ………………………………………. 21.25″
Travel Z-Axis: 120″……………………………………………….. 123.23″
Equipped With (subject to buyer verification):
MATRIX NEXUS CONTROL
Long Boring Bar Stocker
SMW AutoBlock HYDRAULIC STEADY
TAIL STOCK
CHIP CONVEYOR
OIL CHILLER
12 POSITION TURRET
Tool Eye
**21” KITAGAWA B-21A1515 CHUCK with Kitagawa F2511HS15ACylinder (4.62” Dia. Thru Hole)
