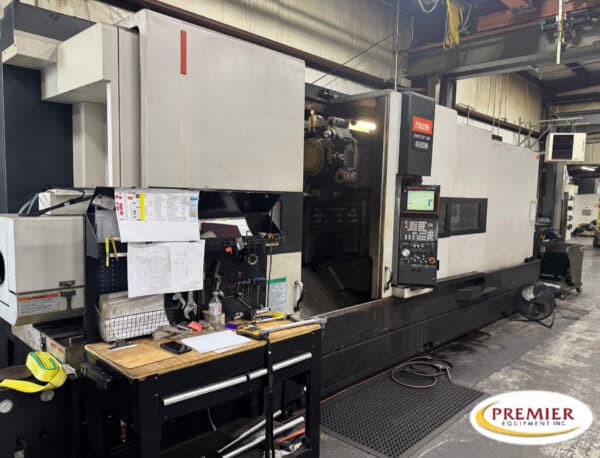

Mazak Cybertech 4500M x 120” Heavy-Duty CNC Turning Center with Milling
Specifications (subject to buyer verification):
Maximum Swing Diameter………………… 33.8″
Swing Over Carriage…………………… 27.5″
Swing Over Carriage with Steady Rest……. 20.87″
Max. Cutting Diameter…………………. 31.9″
Max. Cutting Length 120″……………….. 120″
MAIN SPINDLE SPECIFICATIONS:
Spindle Index (Programmable)…………… 0.001 Degree
C-Axis Torque (30 min.)……………….. 1,045 ft-lbs
OPTIONAL 7.28″ SPINDLE BORE:
Spindle Nose…………………………. A2-15
Spindle Bore…………………………. 7.28″
Spindle Speed/Range…………………… 1,600 RPM/2
Spindle Horsepower (Cont/30 mins.)……… 40/50 HP (AC)
Spindle Torque (30 min.)………………. 3,320 ft-lbs
TURRET AND TOOLING SPECIFICATIONS
Type of Turret……………………….. Drum
Number of Tools………………………. 12 Bolt On
AXIS TRAVELS
Travel X-Axis ……………………….. 21.25″
Travel Z-Axis120″…………………….. 123.23″
Equipped With (subject to buyer verification):
Mazatrol Fusion 640MT Pro Control
Tailstock
Steady Rest
Milling
C-Axis
Chip Conveyor
Prepped for Rear Chuck
