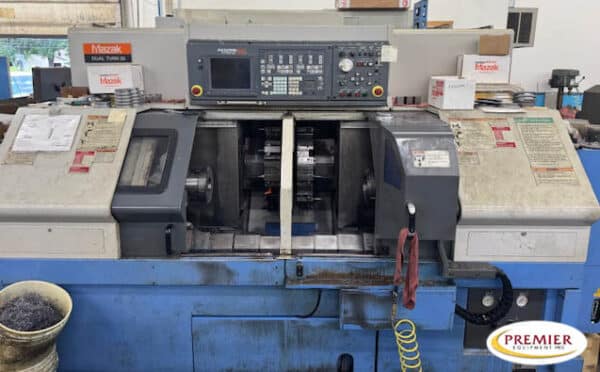

Mazak DualTurn 20 Twin Spindle Twin Turret CNC Turning Center
Specifications (subject to buyer verification):
CNC Turning Center
Specifications (subject to buyer verification):
Standard Cutting Diameter10”
Max Swing Diameter12.6”
Max Cutting Length for Cutting Work5.91”
Distance Between Spindle Faces49.21”
Spindle Bore2.4”
X Axis Stroke (1 & 2 Turret)9.06”
Z Axis Stroke (1 & 2 Head)19.69”
Spindle Speed Range / Motor35 – 4750 RPM / 20 HP
Spindle Nose / Spindle BoreA2 – 6 / 2.4”
Number of Turrets / Capacity2 / 12 Position
Rapid Traverse Rate X, Z Axis1200 IPM, 1300 IPM
Max. Cutting Feedrate197 IPM (X & Z)
Machine Size (approx.)134” x 72.9” x 80.3” (Machine Only)
Machine Weight (approx.)14,520 lbs (Machine Only)
Equipped With (subject to buyer verification):
Mazatrol Fusion 640T Control
Chip Conveyor
(2) 8″ Non Thru Type Chucks
