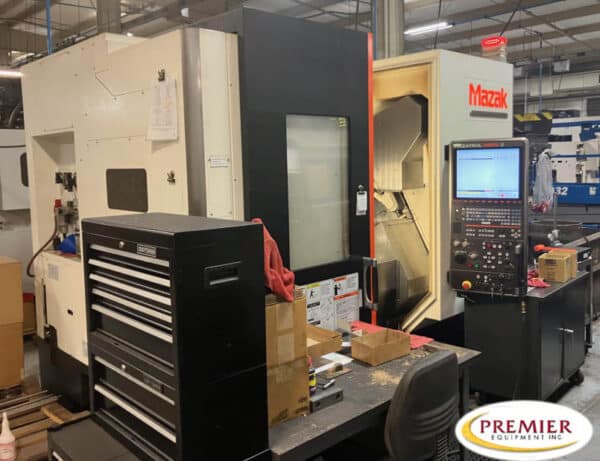

Mazak Hyper Quadrex 150MSY Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
Maximum Swing Over Upper Turret……………. 12.6″
Maximum Swing Over Lower Turret……………. 10.63″
Maximum Machining Diameter: Chucking……… 11.625″(Upper)
Maximum Machining Diameter: Chucking……… 6.61″(Lower)
Maximum Distance Between Chuck Jaws……… 24.375″
MAIN SPINDLE SPECIFICATIONS (L):
Preparation ONLY for BB06 6” 3-Jaw or Collet Chuck
Spindle Nose………………………………………. A2-6
Spindle Bore……………………………………….. 2.99″
**Maximum Bar Work……………………………….. 2.0”
NOTE: **Maximum bar work and maximum spindle speed depends upon optional chuck package.
Spindle Speed……………………………………… 35-5,000 RPM
Spindle Index (Programmable)…………………… 0.0001 Deg. 3,600,000 Positions
Spindle Horsepower (Cont./30 Min.)……………. 15/20 HP (AC)
Spindle Torque (15% ED)………………………… 172 ft-lbs.
SECOND SPINDLE SPECIFICATIONS (R)
6” B06 Chuck Package with RNKP105-15 Non-thru hole cylinder
Spindle Nose………………………………………… A2-5
Spindle Bore…………………………………………. 2.4”
Spindle Speed………………………………………. 35-6,000 RPM
Spindle Index (Programmable)……………………. 0.0001 Deg. 3,600,000 Positions
Spindle Horsepower (Cont./30 Min.)…………….. 10/15 HP (AC)
Spindle Torque (25% ED)…………………………. 119.5 ft-lbs.
UPPER / LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret……………………………………… 12 pos. Drum VDI
Tool Shank Height…………………………………. 3/4″
Tool Size (Boring Bar Max. Dia.)………………… 1.25″
Total Number of Tools…………………………….. 12
Tool Selection Method…………………………….. Bi-Directional
Tool Index Time (1 Step)…………………………. 0.2 sec.
Rotary Tool Spindle Speed……………………….. 35-6,000 RPM
Equipped With (subject to buyer verification):
Matrix 2
PC
Chip
PC
Chip
