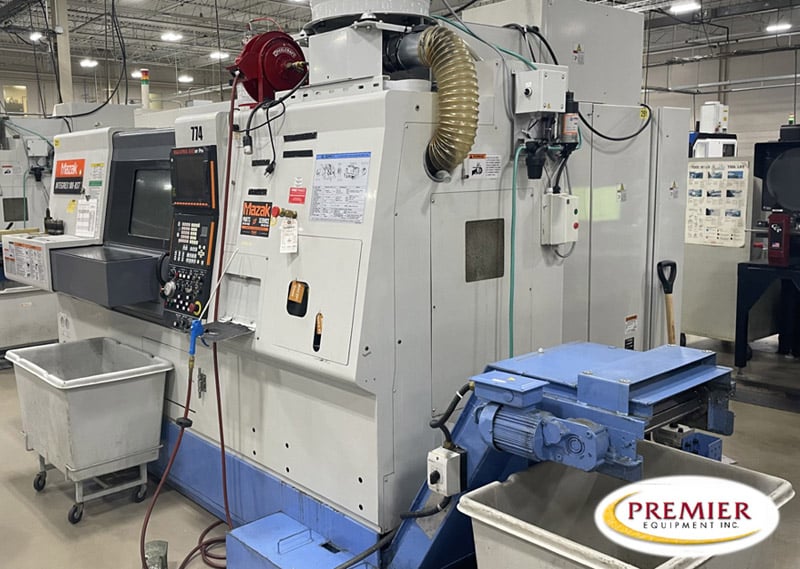

Mazak Integrex 100IIIST with Gantry Robot Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
Maximum Swing……………………… 21.45″
Maximum Swing using Y-axis………….. 16.22″-21.45″
Maximum Swing over Cross Slide………. 13.86″
Maximum Swing over Lower Turret……… 15.74″
NOTE: Without boring bar holder on turret.
Maximum Cutting Diameter: Chucking…… 21.45″ (Upper)
Maximum Cutting Length……………… 29.65″
Maximum Distance Between Chuck Faces…. 28.9″
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose………………………. A2-5
Spindle Bore………………………. 2.4″
Maximum Bar Work…. ………………. 1.65” / 2.0″ Option???
Spindle Speed……………………… 6,000 RPM
Spindle Index (Programmable)………… 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Mins.)….. 10/15 HP (AC)
Spindle Torque…………………….. 119 ft-lbs.
SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose………………………. A2-5
Spindle Bore………………………. 2.4″
Spindle Speed……………………… 6,000 RPM
Spindle Index (Programmable)………… 0.0001 Deg C-Axis
Spindle Horsepower (Cont./30 Min.)…… 10/15 HP (AC)
Spindle Torque…………………….. 119 ft-lbs.
UPPER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret…………………….. 1 position w/ATC
Tool Shank Height………………….. 3/4″
Tool Size (Boring Bar Max. Dia.)…….. 1.25″
Magazine Capacity………………….. 40
Tool Selection Method………………. Random
Tool to Tool ATC Time………………. 1.2 sec.
Max. Tool Dia. w/All Pockets Full……. 2.76″
Max. Tool Dia. w/Adjacent Pockets Empty. 3.54″
Max. Tool Length (From Gage-Line)……. 7.87″
Maximum Tool Weight………………… 8.8 lbs.
Rotary Tool Spindle Speed…………… 12,000 RPM
Rotary Tool Spindle Horsepower (20% ED). 7.5 HP (AC)
LOWER TURRET AND TOOLING SPECIFICATIONS:
Total Number of Tools………………. 9
Tool Selection Method………………. Bi-Directional
Tool Index Time (1 Step)……………. 0.14 sec.
AXIS TRAVELS:
B-Axis……………………………. 225 Deg. (0.0001 Deg. increments)
Y-Axis……………………………. +/-2.75″
X-Axis……………………………. 16.14″
Z-Axis……………………………. 31.69″
X2 Axis Lower……………………… 8.66″
Z2 Axis Lower……………………… 30.7″
Second Headstock W-Axis…………….. 31.3″
Equipped With (subject to buyer verification):
Mazatrol M640MT PRO Control
PCMCIA slot and 10/100 Ethernet Card
Upgraded control hard drive to solid state type November 2018
Mazak 2D high speed software
Multi Tool & flash tool ready
Mayfran Concept 2000 extended height 72” Chip Conveyor Side Discharge
6,000 rpm Main Spindle Speed
12,000 rpm rotary tool spindle speed
6,000 rpm sub spindle with .0001 with C axis contouring
40 tool Capto magazine
Tool ID system with reader head in magazine
Auto power off breaker trip
Auto pecking drill cycle with load detection
Signal tower with 3 color lights
High power coolant 213 psi.
Flood Coolant
Workpiece cleaning coolant 1st spindle
Turret air blast
GL75F gantry robot D3 hand with dual 20 pallet rotary conveyors
No Tooling included
