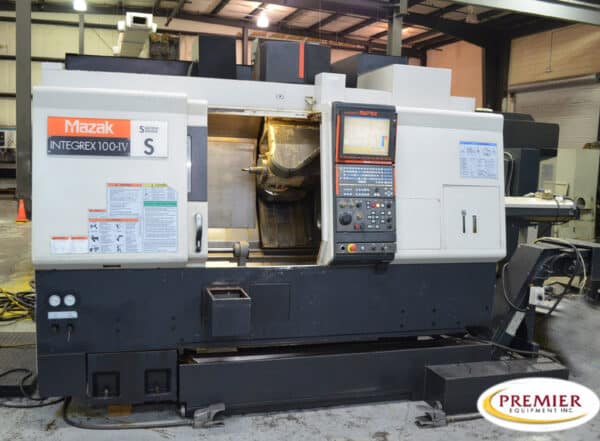

Mazak Integrex 1004S Multi-Tasking CNC Turning/Milling Center / Integrex 100IVS
Specifications (subject to buyer verification):
Maximum Swing……………………… 21.46″
NOTE: Tool eye body may limit max. swing.
Maximum Swing using Y-axis………….. 16.22″-21.46″
Mazimum Swing over Cross Slide………. 13.86″
Maximum Cutting Diameter: Chucking…… 21.46″
Maximum Cutting Length……………… 29.65″
Maximum Distance Between Chuck Faces…. 31.18″
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose………………………. A2-5
Spindle Bore………………………. 2.4″
Maximum Bar Work…. ………………. 1.6”
Spindle Speed……………………… 6,000 RPM
Spindle Index (Programmable)………… 0.0001 Deg. 3,600,000 Positions
Spindle Horsepower (Cont./30 Mins.)….. 10/15 HP (AC)
SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose………………………. A2-5
Spindle Bore………………………. 2.4″
Spindle Speed……………………… 6,000 RPM
Spindle Index (Programmable)………… 0.0001 Deg. C-axis optional
Spindle Horsepower (Cont./30 min)……. 10/15 HP (AC)
Spindle Torque…………………….. 119 ft-lbs.
TURRET AND TOOLING SPECIFICATIONS:
Magazine Capacity………………….. 40 tools
ATC Tool Shank…………………….. Mazak KM63
Rotary Tool Spindle Speed…………… 12,000 RPM
Rotary Tool Spindle Horsepower (20% ED). 7.5 HP (AC)
AXIS TRAVELS:
B-Axis……………………………. 225 degrees (0.0001 degree increments)
Y-Axis……………………………. +/-2.75″
X-Axis……………………………. 16.14″
Z-Axis……………………………. 31.69″
Second Headstock W-Axis…………….. 31.3″
Equipped With (subject to buyer verification):
Mazatrol Matrix CNC Control
40 KM Tool Magazine
Chip Conveyor Side Disposal (Hinge Type)
Automatic Tool Eye
Auto Chuck Jaws Open/Close (1&2 Spindle)
Automatic Parts Catcher w/Ejec
Chuck Air Blast (1st Spindle)
Collet Type Chucks
Collet Type Chucks
